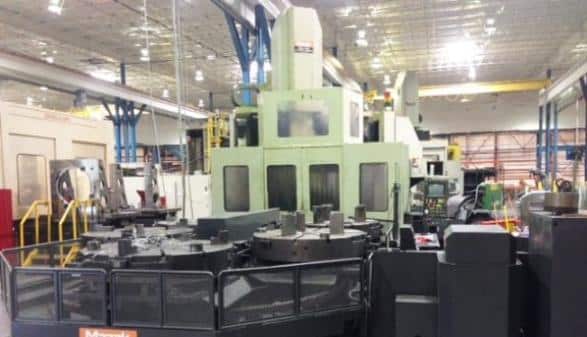

Mazak MegaTurn A-12M (6-Pallet) – 1995

SKU: 1995-Mazak-MegaTurn-A-12M-(6-Pallet) ,

Table Diameter 49.21″ Maximum Swing 57.08″ Maximum Turning Diameter 53.15″ Maximum Workpiece Height 48.23″ X-Axis Travel, Rt From Table Center 32.08″ X-Axis Travel, Lt, From Table Center 21.75″ Z-Axis Travel, Ram Stroke 31.49″ Cross Rail Positioning, 4-Steps 31.49″ Maximum Weight Of Workpiece 15,400 LBS Rapid Traverse 394 IPM Table Speeds 2-350 RPM Rotary Tool Speeds 15-1500 RPM Spindle Taper #50 Cat C-Axis Table Positions 360,000 Milling Spindle Motor 20 HP EQUIPPED WITH: Mazatrol T32-3 3-Axis CNC Control 30 Position Automatic Tool Changer Through the Tool Coolant C-Axis Table For Milling & Drilling Operations (6) Pallet Shuttle System Full Chip & Coolant Guards, Chip Conveyor 60 HP Main Motor
