Chevalier FSG-3A818 Grinder – 2013

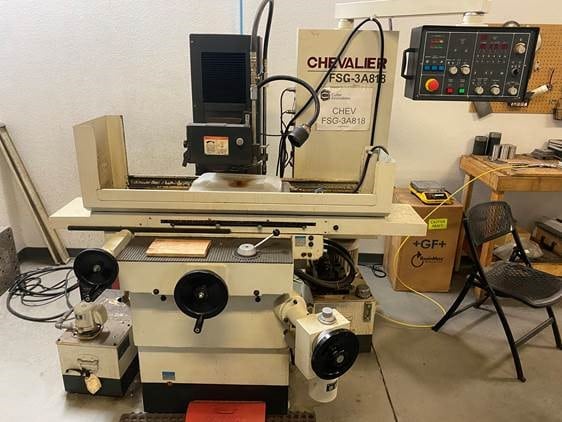

Chevalier FSG3A818 Automatic Precision Surface Grinder
Specifications (subject to buyer verification):
Capacity
Grinding length 18.0″ 457 mm
Grinding width 8.0″ 203 mm
Distance table to centerline of wheel 17.7″ 450 mm
Max. table load 551 lbs. 250 kg
Table
Table size 8.0″ x18.0″ 203 x 457 mm
Max. table travel – manual 20.9″ 530 mm
Table speed (varible) 16 ~ 82 fpm 5~ 25 m/min
Traverse movement (Z)
Feed speed 37 ipm 960 mm/min
Auto traverse movement 0.02″ ~ 0.24″ 0.4 ~6 mm
Max. manual travel 9.4″ 240 mm
Spindle
Spindle speed 60Hz 3,450 rpm / 50Hz 2,850 rpm –
Spindle motor 2 HP 1.5 kW
Wheel dimension
OD x Width x Bore Ø 8” × 0.5” × Ø 1.3” Ø 205 × 12.7 × Ø31.75 mm
Machine dimensions
Floor space (W x D x H) 88.6″ x 70.5″ x 74.8″ 2,250 x 1,790 x 1,900 mm
Net weight 2,910 lbs. 1,320 kg
