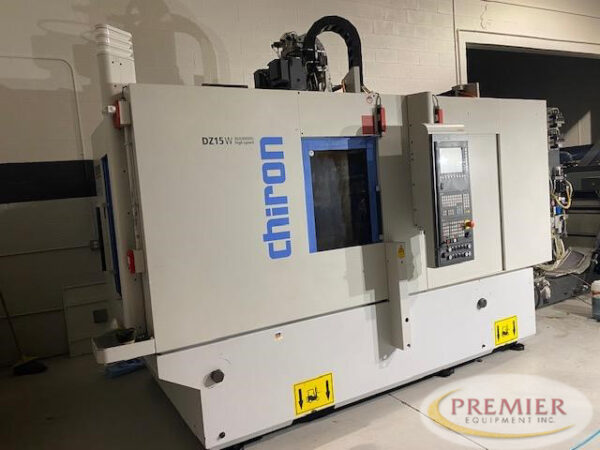

Chiron DZ15W Twin Spindle 5-Axis VMC – 2014

Chiron DZ15W for sale
2-Pallet / Twin Spindle 5-Axis Machining Center

Specifications (subject to buyer verification):
DRILLING CAPACITY IN STEEL 2X0 36MM(WITH INSERT DRILL)
TAPPING CAPACITY 2 X M 24
MILLING CAPACITY IN STEEL 2 X 150 CM3/MIN

COLUMN MOVING MACHINING CENTER:
with machine bed in mineral cast technique
and integrated work piece swivel table
suitable for dry-machining with optimized chip drop
VZDZ15WDSKM

-MAIN SPINDLE DRIVE WITH TWO AC-MOTORS
Spindle Speed: 20,000 RPM

-TRAVEL
X-AXIS: 24.8”
Y-AXIS: 15.7”
Z-AXIS: 14.17”

SPINDLE DISTANCE IN X-AXIS: 12.598” (VC01102990)

AUTOMATIC TOOL CHANGER:
NO. OF TOOLS 2 X 24
TOOL SHAFT HSK A 63 DIN 69893
MAX TOOL DIA 78MM IF ALL MAGAZINE POS. ARE OCCUPIED
MAX TOOL DIA. 140MM IF ADJACENT PLACES ARE FREE
MAX TOOL LENGTH 300MM
MAX TOOL WEIGHT 5,0 KG
CHIP TO CHIP TIME APPR 2,4 Seconds (DEPENDS ON CNC)
VC01104185

INTERGRATED WORKPIECE SWIVEL TABLE IWW 0/180 DEGREES
for ultimate chip drop, with center divider
workpiece swivel time appr3,5 seconds weight-dependent self regulating
trough self learning speed-control
table loading capacity per side 0-max 250kg max,120kg difference between the two table sides
per table side intergrates
NC-rotary-tabletype ATU200 with hydraulic clamping repetition accuracy +15
Load moment of inertia (without turning supply)5,76 kgm2
face plate dia 225mm
with center bore dia 50 H7 mm, fixture pin dia H7
4 fixture bores M10
-CHIRON standard fixture for rotary table

– BRIDGE SIZE 800MM
-HYDRAULIC UNIT
-AC SERVO MOTORS FOR X,Y,Z AXES
-SIEMENS CNC CONTROL 840D
-CHIRON MAINTENANCE MANAGEMENT IN SCREEN

-WORKING HOURS AND PIECE COUNTER
in the screen
VC01108155

-RIDGID TAPPING
VC04100600-01

-SOCKET 120V
at control panel
VC01401000

-SOCKET FOR PORTABLE MINI-HAND WHEEL
without emergency stop button at control panel
VC01100230

-CABINET COOLER AS A DOOR MOUNTING UNIT
-SIGNAL LAMP ON MACHINE ENCLOSURE FOR 3 SIGNALS
-MACHINE ENCLOSURE WITH FULL ENCLOSED WORKSPACE
-MINI-OPERATING PANEL
-COOLANT EQUIPMENT WITH CHIP CONVEYOR(SCRATCH BAND) DISCHARGE HEIGHT 490MM
-PRECONDITION
-2X MACHINE PREPARATION
-OIL FREE AIR SERVICE UNIT
-WASH GUN
-CENTRAL PNEUMATIC SUPPLY
-AUTOMATIC TRANSFORMER INPUT VOLTAGE 480 VOLT
-OPTIONAL EXTRA EQUIPMENT
-2X INCREASED SPINDLE DRIVE
-CHIP CONVEYOR WITH INCREASED DISCHARGED HEIGHT
-COOLANT EQUIPMENT HL 450/900
-FIXTURE WASHING
-70 BAR HIGH PRESSURE PUMP
-WORKSPACE WASHING
-CONVENIENCE PACKAGE SERIES PRODUCTION
-AUTOMATIC LOADING DOOR OF TOTAL ENCLOSURE
-FIXTURE WASHING
-ELECTRIC INTERFACE FOR LOADER WITH ‘PROFIBUS’ SIEMENS ON S-MACHINES FOR LOADING TROUGH SIDE WALL OF MACHINE
-CENTRAL HYDRAULIC AND PNEUMATIC SUPPLY
-CHIRON LASER CONTROL SINGLE F1000
-8X PARTS LOCATION AIR SENSORING
-DIFFERING PAINT FINISH OF THE OUTSIDE SURFACES
-2X DIRECT PATH MEASURING SYSTEM
-SIMPLEX GRINNELL ANSUL CO2 FIRE SUPPRESSION SYSTEM
-ARTIS TOOL BREAKAGE MONITORING SYSTEM
-STABILIZED POWER SUPPLY
-POWER SURGE FILTER
-DATA SERVER
-AUTOMATIC CENTRAL OIL LUBRICATION

Knoll Vacuum 450/900 System
Siements CNC Control
