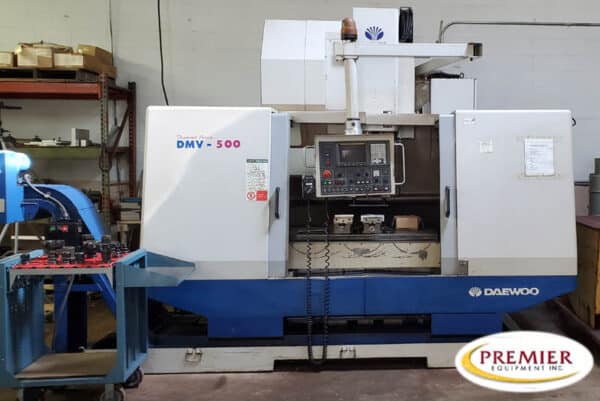

Daewoo DMV500 CNC Vertical Machining Center
Specifications (subject to buyer verification):
TABLE SIZE 47.2″ x 19.7″
MAX. TABLE LOAD (EVENLY DISTRIB.) 1,764 LBS
SPINDLE NOSE TO TABLE TOP 5.9″ – 26.0″
X AXIS TRAVEL 40.2″
Y AXIS TRAVEL 19.7″
Z AXIS TRAVEL 20.1″
RAPID TRAVERSE RATE X & Y AXES 1181 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
CUTTING FEED RATE ALL AXES 0.04 – 315 IPM
SPINDLE SPEEDS 0 – 8,000 RPM?
SPINDLE TAPER 40
SPINDLE MOTOR 20 HP
TOOL CHANGER CAPACITY 30 STATIONS
TOOL CHANGE TIME (TOOL TO TOOL) 1.5 SECONDS
MAX. TOOL WEIGHT 17 LBS
APPROX. DIMENSIONS 124″ x 107″ x 116″
APPROX. WEIGHT 15,432 LBS
Equipped With (subject to buyer verification):
Fanuc Series 21-M CNC Control
Chip Conveyor
