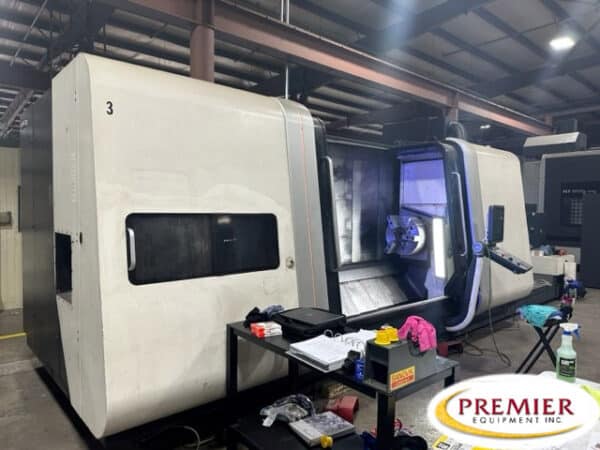

DMG Gildemiester CTX Gamma 2000 TC Linear CNC Turning Center
Specifications (subject to buyer verification):
turning length 78.74”
Main spindle integrated spindle motor
drive power 47/60 hp
Spindle Speed 4,000 rpm
Drawtube ID 4.09” x 33.38” Deep
C-axis and spindle brake (hydraulic )
upper compound slide with turning-/milling spindle, with hydraulic locking
Spindle Taper CAPTO C6
Y-axis ±7.87”
B -axis 120 interpolating,Torque motor
Counter Spindle Motor 46 / 60 HP
Counter Spindle Draw Tube 4.09”
Tool magazine 120
Equipped With (subject to buyer verification):
Siemens Sinumerik 840D Ergoline Control
Turn/Mill Spindle with Tool Reception Capto C6
Star Type Turret 12 Fold with Tool Drive
Tool Magazine 120 Fold Chain Mag – Capto C6
Additional Magazine Above the Counter Spindle 6 Tool Mountings
Counter Spindle as Integegrated Spindle Motor
C-Axis on Counter Spindle
Hydraulic Hollow Clamping Attachment 4.09” Dia
Auto Door
Inprocess Measuring Device for Chuck Parts – Marposs E86
Compact Coolant System
