DMG Mori NLX-2500SY/1250 – 2020

YouTube video

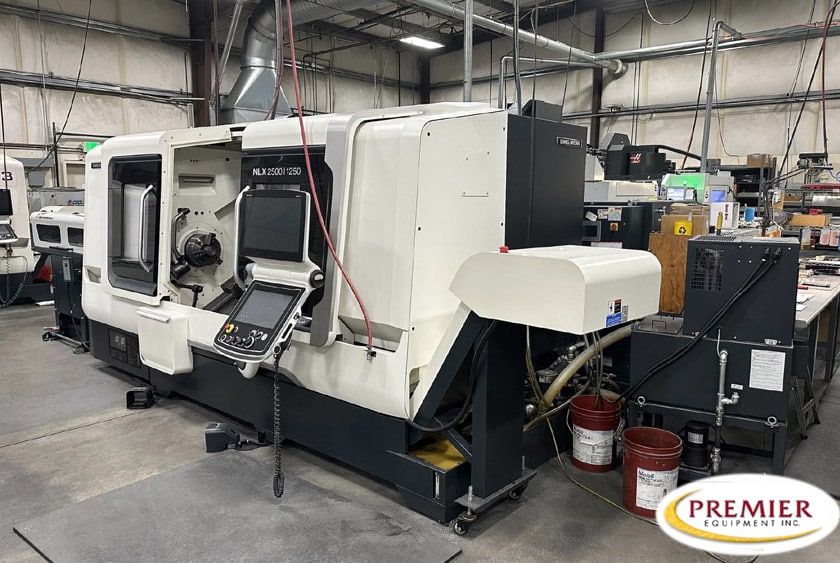

DMG Mori NLX2500SY/1250 Multi-Axis CNC Lathe
Specifications (subject to buyer verification):
Swing Over Bed 36.2”
Swing Over Cross Slide 29.2”
Max Turning Diameter 14.4”
Standard Turning Diameter 10.6”
Max. Turning Length 49.4”
Bar Work Capacity 3.1”
X-Axis Travel 10.2”
Y-Axis Travel +/-2.0”
Z-Axis Travel 53”
B-Axis (spindle 2) 50.6”
Spindle 1
Max Spindle Speed 4000 RPM
Motor 25/20 HP
Spindle Nose A2-8
Through-Spindle Hole Diameter 3.6”
Spindle 2
Max Spindle Speed 6000 RPM
Motor 15/10 HP
Spindle Nose A2-5
No. of Tool Sations 12
Max Rotary Tool Spindle Speed 10,000 RPM
Rotary Motor 7.5/5HP
Rapid Traverse Rate XZB: 1181 IPM / Y: 393.7 IPM
Floor Space with Chip Conveyor 198” x 87” x 89”
Weight 17,000 lbs est.

Specifications (subject to buyer verification):
Sub Spindle
Tool Prestter
Chip Conveyor Interface Right Discharge
Parts Catcher
