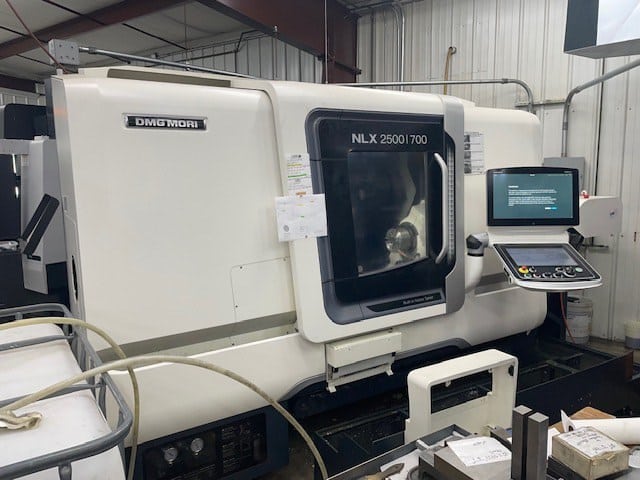

DMG MORI NLX 2500SY/700 CNC LATHE W/MILLING,Y AXIS, SUB SINDLE
Specs
Swing Over Bed 36.4″
Turning Diameter 14.4″
Turning Length 27.7″
Distance Between Spindles 28.9″
Chuck Size 1, 2 10″, 6″
Spindle Nose 1, 2 A2 – 8″, A 2 – 5
Spindle Bore Diameter 1, 2 3.5″, 1.7″
Bar Capacity 1, 2 3″
Spindle Speeds 1, 2 4000, 6000 RPM
Spindle Horsepower 1, 2 25,15 HP
X – Axis Travel X1, X2, X3 10.2″
Z – Axis Travel Z1, Z2, Z3 31.3″
Y – Axis Travel Y1, Y2, Y3 4″
C – Axis Indexing 1, 2 .001, .001
W – Axis Travel Sub Spindle 28.9″
Rapid Traverse Rates X1, X2, X3 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3 393 IPM
Rapid Traverse Rates Z1, Z2, Z3 1181 IPM
Turret Tool Positions 1, 2, 3 12
Turret Rotary Tool Speeds 1, 2, 3 6000 RPM
Turret Rotary Tool Horse Power 1, 2, 3 7.5 HP
Machine Weight 13,648 LBS.
Equipped with
10″ 3-JAW HYDRAULIC CHUCK 6″ 3-JAW HYDRAULIC CHUCK
ALL AVAILABLE MANUAL, WIRING DIAGRAMS & SCHEMATICS CELOS ERGOLINE TOUCH SCREEN WITH MAPPS V CNC CONTROL
CHIP CONVEYOR FULL COMPLIMENT OF STATIC TOOL HOLDERS
PARTS CATCHER AND BUCKET PROCESSING TIME 2367
READY TO OPERATE 3431 TOOL EYE MAIN AND SUB
