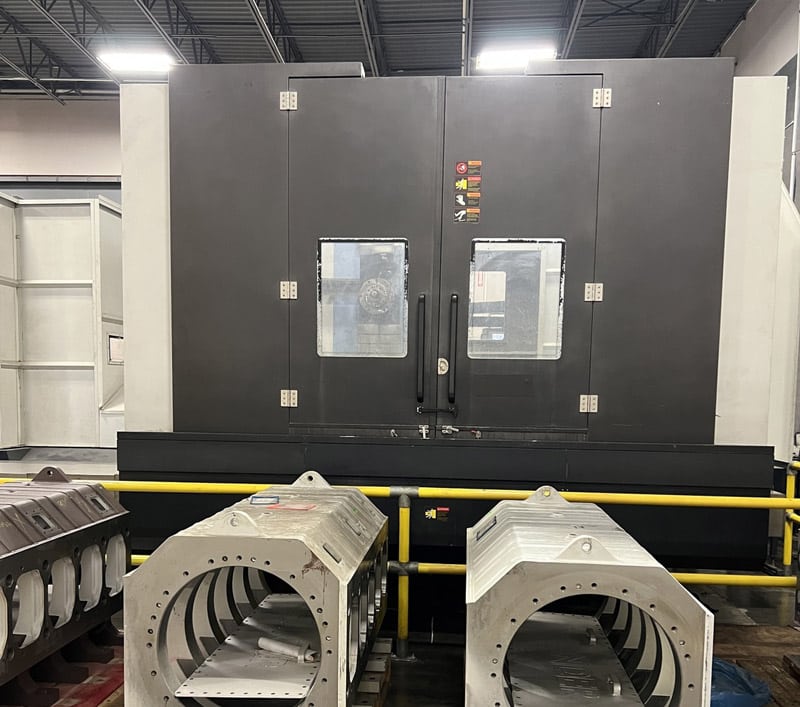

Doosan DBC130-II HBM
SPECIFICATIONS:
CAPACITY:
X axis travel 3,000 mm (118.1″)
Y axis travel 2,000 mm (78.7″)
Z axis travel 1,600 mm (63.0″)
W axis travel 700 mm (27.6″)
Table Size 1,600 mm x 1,800 mm (63″ x 70.8″)
Indexing type Full Rotary B-Axis (360,000 positions)
Locating Pins (4) @ 90 Degrees (+/- 5″ position accuracy)
Max Work piece Diameter (With Semi Splash Guard) 3,400 mm (133.8″)
Max Work piece Diameter (Guard Removed) 3,900 mm (153.5″)
Allowable table load 15,000 kg (33,000 lbs)
SPINDLE:
Boring spindle diameter 130 mm (5.1″)
Spindle Center to Table Top 0 mm to 2,000 mm (0″ to 78.7″)
Spindle Nose to Table Center 700 mm to 2,300 mm (27.6″ to 90.5″)
Big plus Spindle system CAT 50 Big Plus
Spindle speed 10 – 2,500 rpm
AC Spindle Motor (15 min. rating) 22 / 30 kW (30 / 40 hp)
Spindle Torque (15 min. rating) 3,940 nm (2,960 ft-lbs
Machine Height 4,905 mm (193″)
Floor Space Required (L x W) 7,660 mm x 9,286 mm (301.5″ x 365.6″)
Machine Weight 50,500 kg (111,100 lbs
EQUIPPED WITH:
Fanuc Series 31i-B
60 position Automatic Tool Changer
Renishaw part probe
Full enclosure
Chip conveyor
Glass Scales for X,Y and Z axis
3-Speed geared headstock
Coolant through the spindle
Big plus CAT 50
Inspect under Power in a US facility
