DOOSAN DNM5700 2-Pallet – 2017

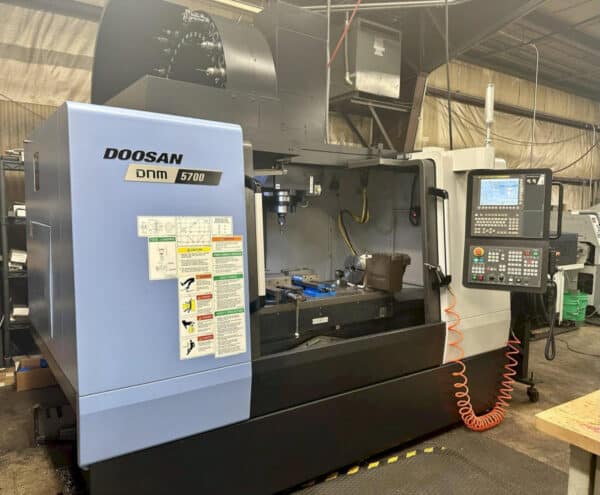

2017 DOOSAN DNM 5700 CNC VERTICAL MACHINING CENTER WITH 4TH AXIS ROTARY
Specs
Number Of Tables / Pallets 1
Table Size 51.18″ x 22.4″
Weight On Table 2205 Lbs.
X – Axis Travel 41.33″
Y – Axis Travel 22.44″
Z – Axis Travel 20.08″
A – Axis Travel .001 N/C
Rapid Traverse X, Y, Z 1417, 1417, 1181 IPM
Spindle Speed 12000 RPM
Spindle Taper 40 CT Big Plus
Main Motor 25 HP
Automatic Tool Changer 30 ATC
Tool Diameter 3.2″ / 4.9″
Tool Length 11.8″
Tool Weight 17.6 Lbs.
Machine Weight 14330 Lbs.
Equipped with
AI APC 20 BLOCK LOOK AHEAD CONTROL AIR THROUGH SPINDLE
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING DOOSAN FANUC SERIES I CNC CONTROL
EMBEDDED ETHERNET FUNCTION MANUAL PULSE GENERATOR
MIDACO SERIES 40 PALLET SYSTEM NIKKEN CNC 180 F-AM FULL 4TH AXIS TABLE
RENISHAW OMP60 SPINDLE PROBE RENISHAW OTS-AA OPTICAL TOOL SETTER
SERIES 40 TRUNION SYSTEM THROUGH SPINDLE COOLANT
Z AXIS PULL UP FUNCTION
