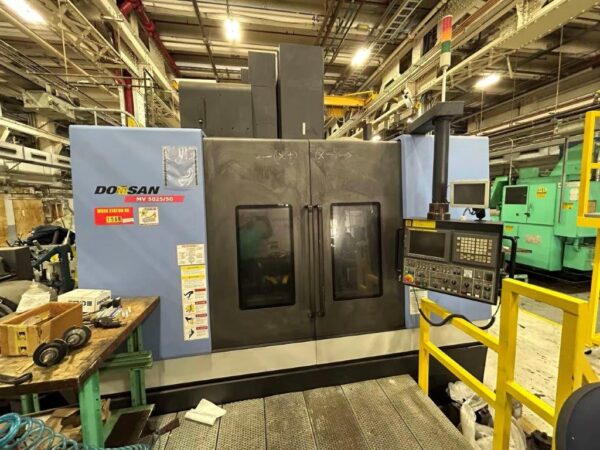

DOOSAN MV5025/50 CNC MIll
SPECIFICATIONS:
X-AXIS TRAVEL ……………………….. 51.1″
Y-AXIS TRAVEL ……………………….. 25.6″
Z-AXIS TRAVEL ……………………….. 24.6″
TABLE SIZE ………………………….. 25.6″ x 55.1″
TABLE LOAD CAPACITY ………………….. 2,200 LBS
SPINDLE TAPER ……………………….. CAT-50
SPINDLE SPEED ……………………….. 6,000 RPM
SPINDLE MOTOR ……………………….. 30 HP
SIDE MOUNT TOOLCHANGER ……………….. 30 ATC
RAPID TRAVERSE RATE (X,Y/Z) …………… 945 IPM
APPROXIMATE MACHINE WEIGHT ……………. 20,300 Lbs.
EQUIPPED WITH:
– FANUC MODEL: 18iMB WITH EZ GUIDE CONTROL
WIRED FOR FOURTH AXIS
– 300mm RAISED COLUMN
– BOX WAY CONSTRUCTION
– CAT 50 BIG PLUS DUAL CONTACT SPINDLE
– COOLANT THROUGH SPINDLE
– CHIP BLASTER 1000 PSI
– MIST COLLECTOR
– OIL CHILLER
– DOUBLE ARM, SIDE MOUNT AUTOMATIC TOOL CHANGER
– CHIP CONVEYOR
– 30 HORSE POWER SPINDLE MOTOR
