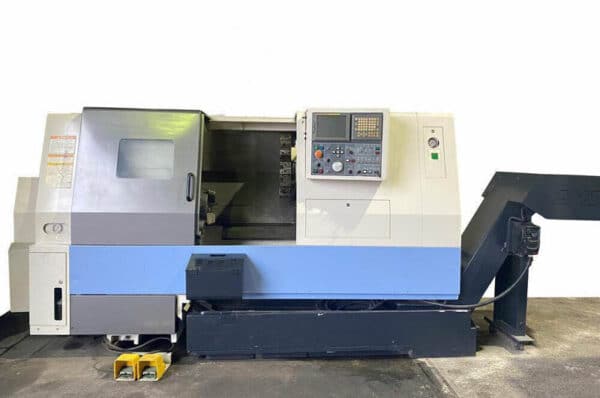

Doosan Puma 400MB – 2006

YouTube video


Turret Capacity: 12 Live Stations
Tailstock: yes
Y Axis: yes
Dimensions: 148″ x 87″ x 90″
Weight: 11200 ounces
Live Tooling: yes
Power: 40 horsepower
CNC Control: yes
Type of CNC Control: Fanuc 21i-TB CNC Control
Chuck Size: 18 inches
Swing: 30.3 inches
Turning Diameter: 22 inches
Center Distance: 42 inches
Bar Capacity: 4.6 inches
Spindle Bore: 5.2 inches
X Axis Travel: 14.1 inches
Z Axis Travel: 43.5 inches
Rapid Traverse (X/Z): 630 IPM/787 IPM
Spindle Speed (RPM): 2000
Main Motor: 40 HP

Equipped With:
Fanuc 21i-TB CNC Control
C Axis
12 Station Live Tool Turret
18″ Big Bore Hydraulic Chuck
5.2″ Bore A2-11 Spindle
Programmable Hydraulic Tailstock
PCMCIA Card Interface
Foot Switch
Coolant System with pump
Chip Conveyor
*All specifications are approximations and are subject to verification
