Doosan Puma 480L – 2011

SKU: Doosan-Puma-480L-2011 ,

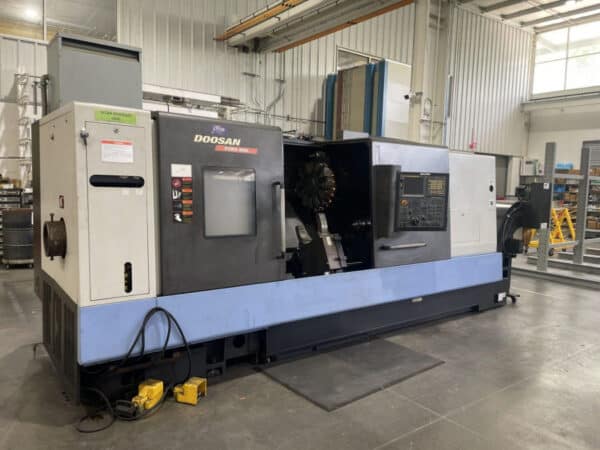

2011 Doosan Puma 480L
CNC Turning Center
Specifications (subject to buyer verification):
Swing Over Bed 35.4”
Swing Over Saddle 28.3”
Max. Machining Dia. 25.6”
Bar Capacity 6.5”
Max Turning Length 80.4”
X-Axis Travel 14.3”
Z-Axis Travel 84.8”
Spindle Nose ASA A1-15
Spindle Bore Diameter 7.1”
No. of Turret Stations 10
Spindle Motor 60 HP (30 min)
Max. Spindle Speed 1500 RPM
X-Axis Rapid Traverse 630 IPM
Z-Axis Rapid Traverse 708 IPM
Tailstock Quill Dia / Taper / Quill Trvl 4.7” / MT#6 / 4.72”
Machine Size 225” x 83” x 86”
Machine Weight 26,700 lbs

Fanuc 32
Steady Rest
Tailstock
Chip Conveyor
