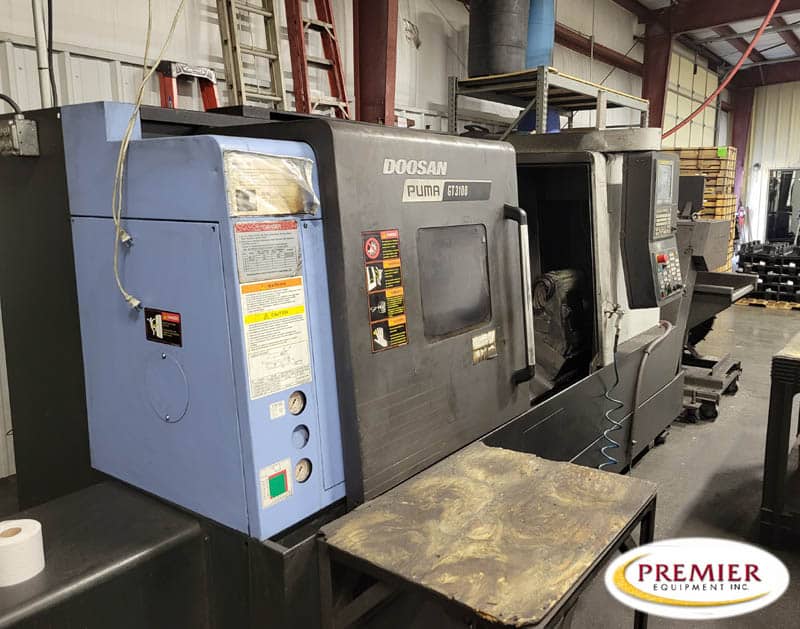

Doosan Puma GT 3100 CNC Turning Center
Specifications (subject to buyer verification):
CAPACITY:
Swing over bed 33.46″
Swing over front door 28.35”
Swing over carriage 26.38″
Maximum bar capacity 4”
Maximum turning diameter 20.67″
Maximum turning length 29.57”
MAIN SPINDLE:
Spindle speed 2,800 RPM
Spindle nose ASA-A2-11
Draw tube I.D. 4.05″
Spindle bore diameter 4.52″
AC high torque spindle motor (30 min rating) 35 HP (2 speed gearbox)
Maximum spindle torque (30 min rating) 884 ft-lbs
Spindle speed ranges 2
BED, SADDLE, & CROSS SLIDE:
X axis travel 11.53”
Z axis travel 32.67”
Angle of slant bed 30 degrees
X axis rapid traverse rate 1,181 IPM
Z axis rapid traverse rate 1,181
TURRET:
Number of tools 12
Tool selection Bi-directional
TAILSTOCK:
Tailstock type Programmable
Tailstock quill diameter 4.72″
Tailstock quill stroke 4.72″
Maximum tailstock quill thrust / maximum hydraulic pressure 4,316 lbs. / 725 PSI
Tailstock spindle taper MT #4
Tailstock guide way span 13.2”
GENERAL:
Floor space (Length X Width) 148” x 78”
Machine height 80.0”
Height from floor to spindle center 46.5”
Net weight 13,000 lbs
Power requirement: 51 KVA (123 amps at 220 volts)
Equipped With (subject to buyer verification):
Doosan-Fanuc I Series
Chip Conveyor
Tool Presetter
12 Station Turret
15″ Chuck
Tailstock
