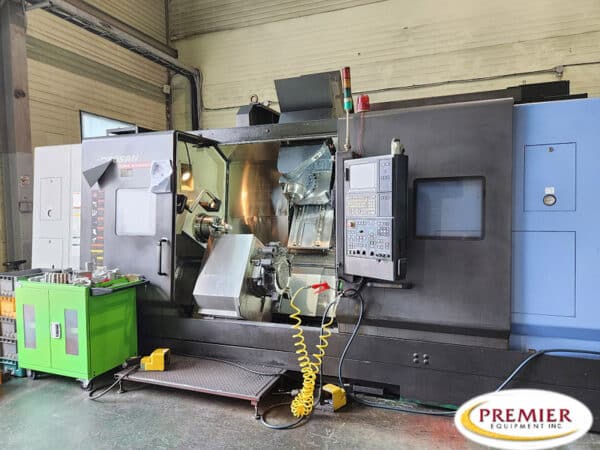

Doosan Puma MX2600ST CNC Multi tasking machine
Max cutting dia : 29.9”
Recomanded cutting dia : 12.99”
Max cutting length : 60”
Bar capacity : 2.99”
Spindle nose : A2-8
Headstock spindle : 4000 rpm
Sub spindle speed : 4000 rpm
Y axis travel : 9”
C axis index : 0.001 degree
B axis +- 120 degree
Milling spindle : CAPTO C6
Milling spindle : 12,000 rpm
Fanuc 31i-A5 control
10” chuck for main & for sub spindle
C axis
Lower turret 12 position
Main & Sub motor : 30/35 HP
Milling spindle : 20 HP
Tool presetter for main spindle
80 tool ATC
Chip conveyor
