Doosan Puma SMX3100ST – 2018

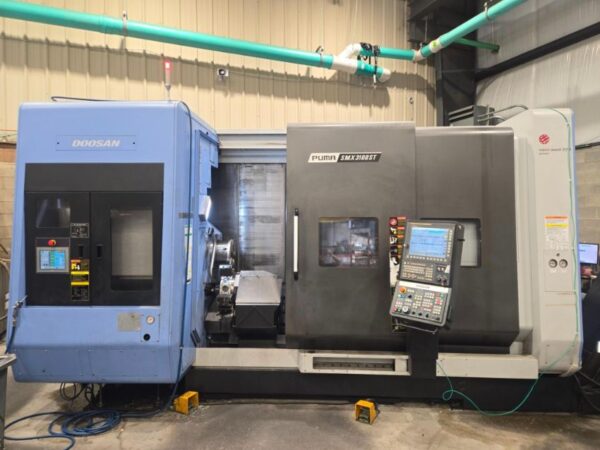

Doosan Puma SMX3100ST Multi-Axis CNC Turning/Milling Center
Specifications (subject to buyer verification):
CAPACITY:
Swing over bed 660 mm (25.98″)
Maximum bar capacity 102 mm (4.0″)
Swing over carriage 660 mm (25.98″)
Maximum turning diameter (Main Spindle) 660 mm (25.98″)
Maximum turning length 1,540 mm (60.63″)
Distance between left and right spindle nose 1,917 mm (75.47″)
Recommended chuck size (left / right spindle) 310 / 255 mm (12 / 10″)

LEFT SPINDLE:
Spindle speed 3,000 rpm
Spindle nose A2-11
Left spindle draw tube ID 103 mm (4.055″)
Spindle bore diameter 115 mm (4.52″)
AC spindle Motor (30 min. rating) 30 kW (40 hp)
Maximum spindle torque (S2 30 min rating) 1,203 Nm (887 ft-lb)

RIGHT SPINDLE:
Spindle speed 40-4,000 rpm
Spindle nose A2-8
Right spindle draw tube ID 82 mm (3.23″)
Right spindle hydraulic actuator ID 46 mm (1.81″)
Spindle bore diameter 91 mm (3.58″)
AC spindle Motor (S2 30 Min rating) 26 kW (35 hp)
Maximum spindle torque (S3 25% ED) 621 Nm (458 ft-lbs)

Equipped With (subject to buyer verification):
FANUC 31i-B5 CNC Control
Servo driven 80 station ATC with 2.1 second tool to tool time
Milling, drilling and rigid tapping capabilities on both spindles
Full contouring C-Axis on both spindles
Orthogonal Y-axis with 300 mm (±150mm) ((11.81″ (±5.9”))) stroke
Right spindle body positioning by ball screw and servo motor. Right spindle can be synchronized with left spindle.
X1-Axis glass scale
Doosan Tool Load Monitoring System
Automatic tool setters for both upper milling spindle and lower turret
Edge Rebel 102SE servo loader bar feeder
Edge Rebel 80 unloader
MP system mist collector
MP system VRT twin outlet 1,000 psi, 8gpm
Custom Mayfran conveyors to allow access for the bar unloader
Royal QG 100 on main spindle
SMW SP280-92 3J air chuck for the second spindle
