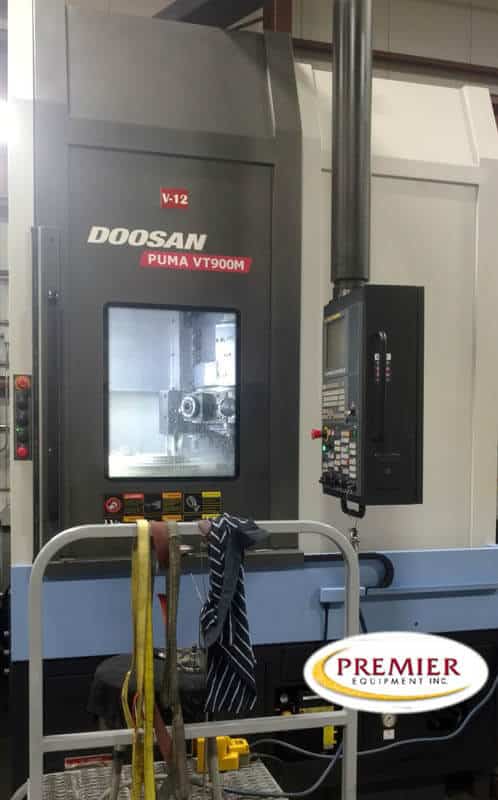

Doosan VT-900MR VTL – 2015

Doosan VT900MR CNC Live Tool Verticle Turret Lathe
Specifications:
Max Swing ………………………………………………………………………………….. 39.37″
Max Turn Diameter ………………………………………………………………………. 35.43″
Max Work Length ………………………………………………………………………… 33.46″
Swing of Carriage …………………………………………………………………………. 27.55″
Max Weight (Including Chuck) …………………………………………………. 2,645 Lbs
Spindle Nose ………………………………………………………………………………… A2-15
Spindle Motor ……………………………………………………………………………….. 60 HP
Spindle Speed …………………………………………………………………. 48 – 1,800 RPM
X Axis Travel ………………………………………………………………………………… 18.5″
Z Axis Travel ………………………………………………………………………………. 33.46″
Rapid Traverse Rates …………………………………………………………………. 787 IPM
Cutting Feed Rates …………………………………………………………………….. 236 IPM
Turret Stations ……………………………………………………………………………………. 12
Machine Weight …………………………………………………………………….. 27,500 Lbs
Machine Dimensions …………………………………………….. 120″L x 84″W x 143″H
Equipped With:
Fanuc I Series CNC Control
Programmable Chucking Pressure
Tool Monitoring System
Auto Door w/Safety Edge
Box Way Construction
32″ Samchully Hydraulic Chuck
(2) Axial Live Tool & (1) Radial Live Tool
Misc. ID & OD Tool Holders
LNS Mist Collector
LNS Chip Conveyor
