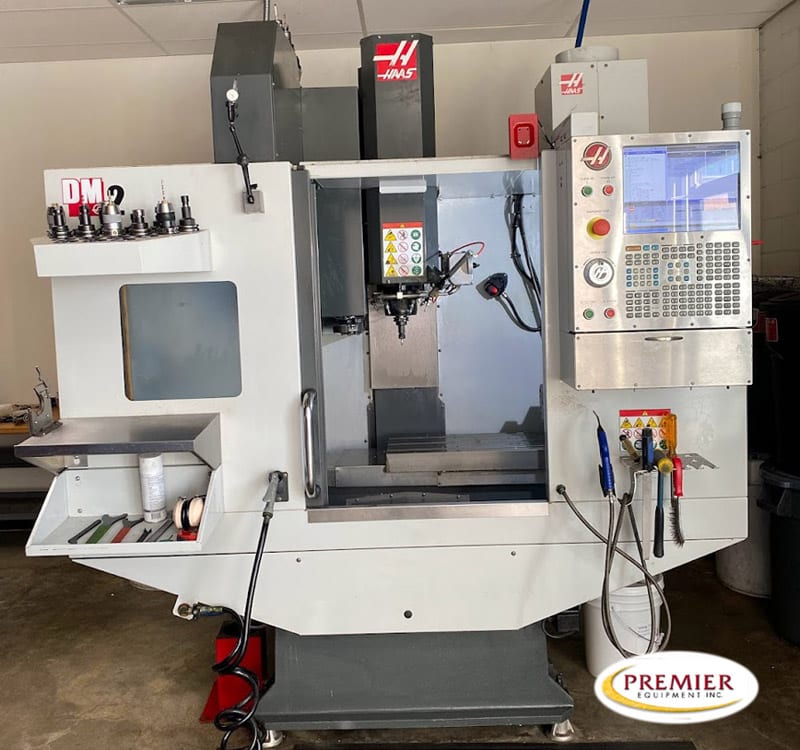

Haas DM2 CNC Drill and Tap with Rotary Table
Specifications (subject to buyer verification):
TRAVELS
X Axis28.0 in
Y Axis16.0 in
Z Axis15.5 in
Spindle Nose to Table (~ max)21.5 in
Spindle Nose to Table (~ min)6.0 in
SPINDLE
Max Rating15.0 hp
Max Speed 15000 rpm
Drive SystemInline Direct-Drive
Taper40
Bearing LubricationAir / Oil Injection
TABLE
Length34.0 in
Width15.0 in
T-Slot Width0.626 in to 0.630 in
T-Slot Center Distance4.92 in
Number of Std T-Slots3
Max Weight on Table (evenly distributed)250 lb
FEEDRATES
Max Cutting1200 ipm
Rapids on X2400 ipm
Rapids on Y2400 ipm
Rapids on Z2400 ipm
TOOL CHANGER
TypeSMTC
Capacity18+1
Equipped With (subject to buyer verification):
Haas CNC Control
15,000-rpm Spindle, 40 taper, 15 hp (11.2 kW) vector drive, inline direct-drive; allows rigid tapping to 5000 rpm
High Pressure Coolant Pump with Through Spindle Coolant
HRT160 Rotary Table
WIPS – Renishaw (Probe and Tool Setter)
Chip Auger
