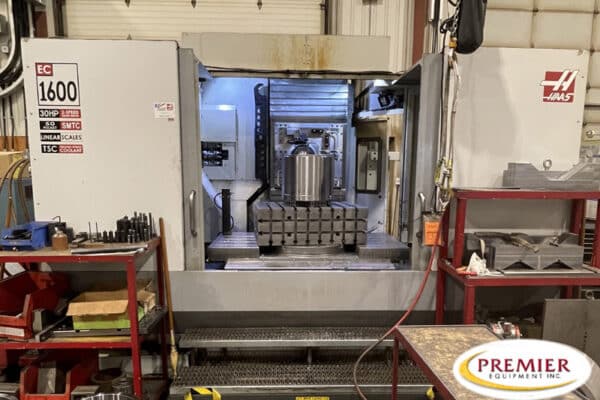

Haas EC1600-4X CNC Horizontal Machining Center
Specifications (subject to buyer verification):
TRAVELS S.A.E.
X Axis 64 “
Y Axis 40 ” (50?)
Z Axis 32 “
TABLE S.A.E.
Length 64 “
Width 36 “
T-Slot Width 5/8 “
T-Slot Center Distance 4.92 “
Max Weight on Table 10000 lb
SPINDLE S.A.E.
Max Rating 30 hp
Max Speed 6000 rpm
Max Torque 450 ft-lb @ 500 rpm
Drive System 2-speed geared head
Taper
4TH AXIS (OPT) S.A.E.
Max Rating 5.0 hp
Platter Diameter 30 “
Max Weight on Platter 10000 lb
Rotational Torque (continuous) 2000 ft-lb
Backlash 30 arc-sec
Brake Torque 4000 ft-lb
Gear Ratio 500:1
Min Resolution 0.001 °
Indexing Accuracy ± 30 arc-sec
FEEDRATES S.A.E.
Rapids on X 540 in/min
Rapids on Y 540 in/min
Rapids on Z 540 in/min
Max Cutting 500 in/min
TOOL CHANGER S.A.E.
Type SMTC SMTC
Capacity 30+1
Max Tool Diameter (adj empty) 10 “
Max Tool Diameter (full) 4 “
Max Tool Length (from gage line) 20 “
Max Tool Weight 30 lb
Tool-to-Tool (avg) 10.3 sec
Chip-to-Chip (avg) 12.6 sec
Machine Weight 30000 lb
Equipped With (subject to buyer verification):
Haas CNC Control
CAT50
Dual Chip Auger
1 GB Memory
Thru Spindle Coolant
50 ATC
Remote Jog Handle
Rigid Tapping
Renisha wTool Setter
Renishaw Probe
Auxiliary Coolant Pump
