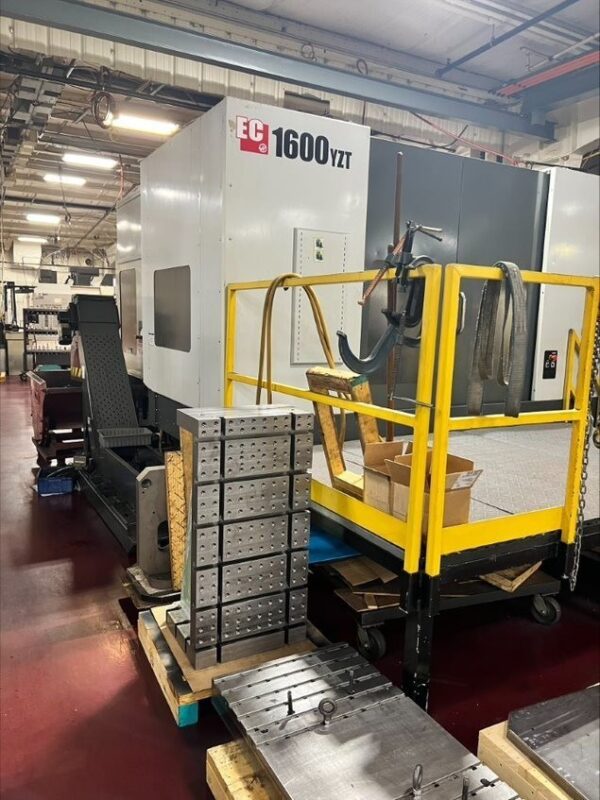

Haas EC-1600YZT (2014)

Haas EC1600YZT for sale – Used Haas HMC for sale
CNC Horizontal Machining Center with Integrated 4th axis Rotary Table

Specification:
Control Haas CNC Control with Coldfire Processor
Table Size 64″ x 32″ Table with 30″ Diameter Built-In Rotary
Machine Travels X/Y/Z 64″ x 50″ x 40″
Spindle Taper Cat 50 Taper
Spindle Speed 6,000 Max RPM
Spindle Drive 30 HP Vector Spindle Drive
Tool Changer Capacity 30+1 Station Twin Arm Automatic Tool Changer
Rapid Feed Rates X/Y/Z 750 IPM
Max Cutting Rate 500 IPM
Table Rotation Full 4th Axis (.001 Degree) Programmable
Maximum Tool Weight 30 Lbs.
Spindle Nose to Table Center 8″
Tabletop to Spindle Center 11.75″

Equipped With:
Haas CNC Control with Coldfire Processor, 4th Axis Control and Intergrated Rotary Table, Enclosure, Programmable
Coolant Nozzle, Remote Jog Handle with Color LCD, Early Power Failure Detetion Module, Rigid Tapping, Thru-
Spindle Coolant, Renishaw Wireless Intuitive Probing, Spindle orientation, User Macros, Coordiante Rotation & Scaling,
User Defined Macros, Chip Auger
