Haas EC-400 – 2013

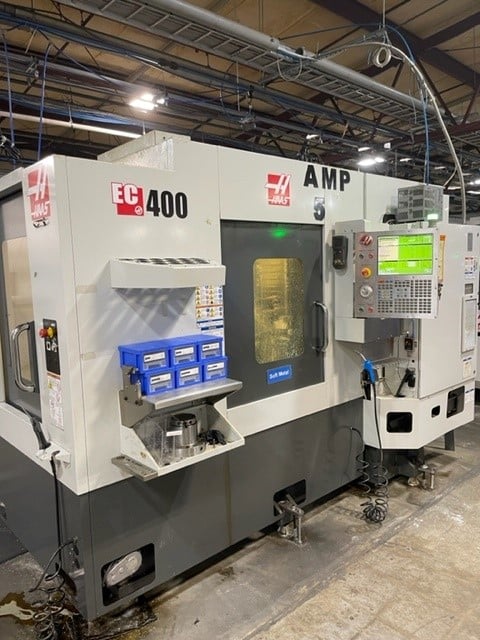

Haas EC400 CNC Horizontal Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis 22.0 in
Y Axis 25.0 in
Z Axis 22.0 in
SPINDLE
Max Rating 30.0 hp
Max Speed 12,00 rpm
Drive System Inline Direct-Drive
Taper 40
INTEGRATED 4TH AXIS (B AXIS)
90° Rotation Time (full 4th) 3.0 s
Platter Diameter 15.75 in
Max Weight on Platter 880 lb
Min Resolution 0.001 °
Rapids on B 150 °/sec
PALLET CHANGER
Pallet Quantity 2
Pallet Length 15.75 in
Pallet Width 5.75 in
Max Pallet Load 880 lb
Pallet Change Time 8 s
FEEDRATES
Max Cutting 833 ipm
Rapids on X 1400 ipm
Rapids on Y 1400 ipm
Rapids on Z 1400 ipm
Weight 19000 lb
TOOL CHANGER
Type SMTC
Capacity 24+1

Equipped With (subject to buyer verification):
Haas CNC Control
HSM – High Speed Machining
PCOOL-E4 – Programmable Coolant
PFDM (power fault module)
4AX-E4 (full 4th axis)
RJH-C
WIPS-R-EC
TSC50T (300psi through coolant)
EXPANDED-MEMORY (750mb)
12K (rpm)
