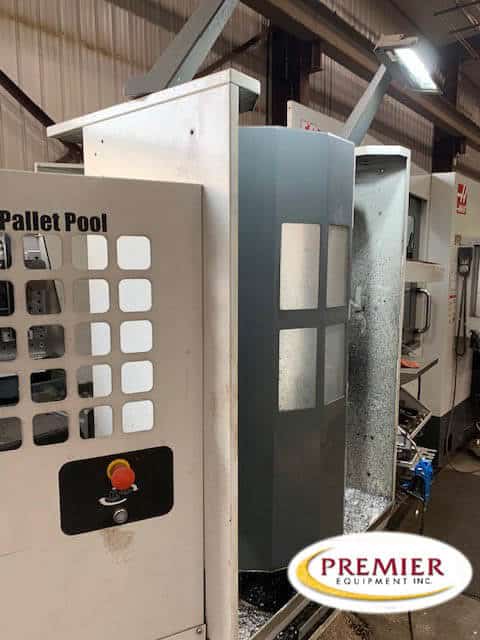

HAAS EC400PP CNC 4 AXIS 6 PALLET HORIZONTAL MACHINING CENTER
Specs
Pallet Size 15.75″ X 15.75″
Number Of Pallets 6
Pallet Weight Capacity 880 LBS.
X – Axis Travel 22″
Y – Axis Travel 25″
Z – Axis Travel 22″
B – Axis Travel .001 DEGREE
Rapid Traverse Rates X, Y, Z 1400 IPM
Cutting Feed Rate 833 IPM
Spindle Speed 8100 RPM
Spindle Taper 40
Main Motor 30 HP
Automatic Tool Changer 100 ATC
Tool Diameter 3″, 6″
Tool Length 11.1″
Tool Weight 17.9 LBS.
Tool Change Time 2.1 SECONDS
Machine Weight 29,000 LBS.
Equipped with
(1) SPARE PALLET (6) DRILLED & TAPPED PALLETS
4TH AXIS ROTARY SCALES 64 GB EXPANDED MEMORY
8 SPARE M-CODES 95 GALLON COOLANT TANK
AUXILIARY COOLANT FILTER SYSTEM AVAILABLE MANUALS
BELT TYPE CHIP CONVEYOR COOLANT THRU SPINDLE 300 PSI
FILTRATION SYSTEM FULL 4TH AXIS
HELICAL INTERPOLATION THROUGH-TOOL AIR BLAST
WI FI CONNECTION WINDOW AIRBLAST
