Haas EC-400PP (6-Pallet Changer) – 2021

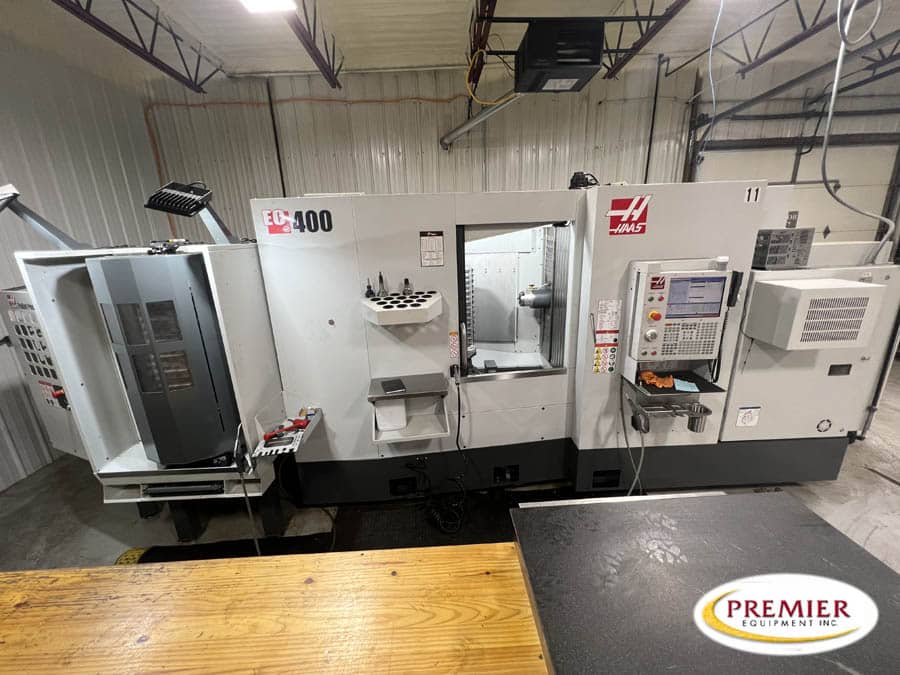

Haas EC400PP CNC Horizontal Machining Center
Specifications (subject to buyer verification):
RAVELS
X Axis 22.0 in
Y Axis 25.0 in
Z Axis 22.0 in
SPINDLE
Max Rating 30.0 hp
Max Speed 15,000 rpm
Taper CAT40
Bearing Lubrication Air / Oil Injection
Cooling Air Cooled
INTEGRATED 4TH AXIS (B AXIS)
90¡ Rotation Time (full 4th) 3.0 s
Max Weight on Platter 880 lb
Rotational Torque (continuous) 424 ft-lbf
Backlash 30 arc-sec
Gear Ratio 106:1
Min Resolution 0.001 °
Indexing Accuracy ± 15 arc-sec
Repeatability 10 arc-sec
Rapids on B 150 °/sec
PALLET CHANGER
Pallet Length 15.75 in
Pallet Width 15.75 in
Max Pallet Load 880 lb
FEEDRATES
Max Cutting 833 ipm
Rapids on X 1400 ipm
Rapids on Y 1400 ipm
Rapids on Z 1400 ipm
TOOL CHANGER
Type SMTC
Capacity 50+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 12 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
DIMENSIONS – SHIPPING
Domestic Pallet 202 in x 100 in x 112 in
Weight 17520 lb
Equipped With (subject to buyer verification):
Haas CNC Control
CAT
15,000 RPM Spindle
50+1 Side Mount Tool Changer
Through Spindle Coolant, 1k
Wireless Intuitive Probing System (WIPS)
Automatic Coolant Refill
6-Sation Pallet Pool
Wifi Camera
High-Speed Machining
