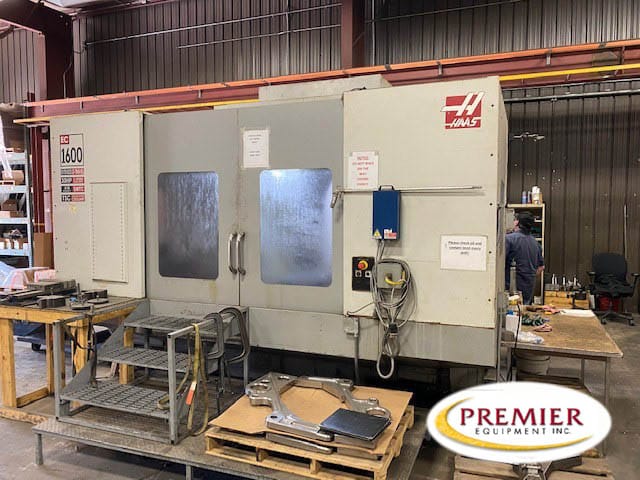

HAAS EC-1600ZT – 2008

SKU: HAAS-EC1600-2013-2 ,

HAAS EC1600ZT 4 AXIS CNC HORIZONTAL MACHINING CENTER
Specs
Pallet Size 64″ x 36″ 30″ Dia. Rotary)
Number Of Pallets 1
Pallet Weight Capacity 10,000
X – Axis Travel 64″
Y – Axis Travel 50″
Z – Axis Travel 40″
B – Axis Travel .001
Rapid Traverse Rates X, Y, Z 540,540,540 IPM
Cutting Feed Rate 500 IPM
Spindle Speed 7500
Spindle Taper 50
Number Of Ranges 2
Main Motor 50 HP
Automatic Tool Changer 50 + 1
Tool Diameter 4″, 10″
Tool Length 20″
Tool Weight 30″
Machine Weight 34,100 LBS.
Equipped with
1000 PSI CHIP BLASTER SYSTEM ALL AVAILABLE TOOLING AND MANUALS
BUILT-IN 4TH AXIS ROTARY TABLE CHIP CONVEYOR
COORDINATE ROTATION & SCALING HAAS CNC CONTROL 15″ COLOR SCREEN
RIGID TAPPING SPINDLE ORIENTATION
USER MACROS
