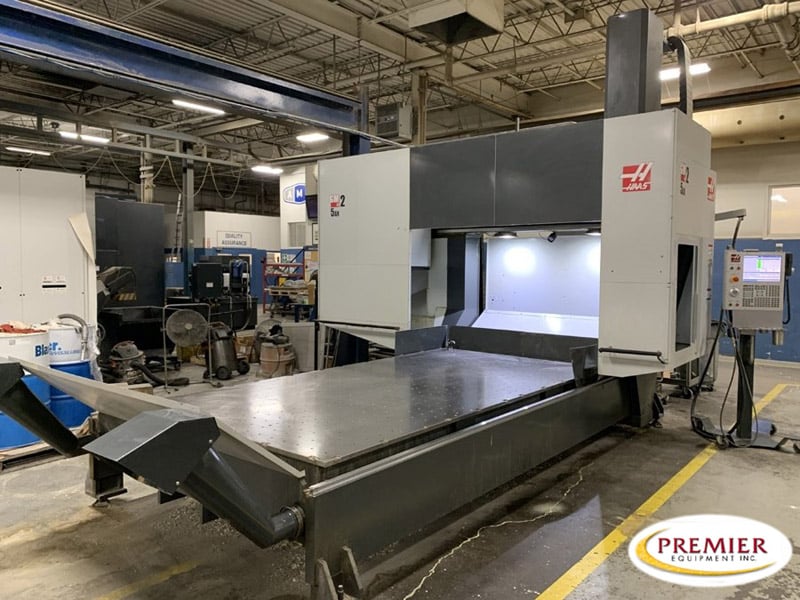

Haas GM2-5AX CNC 5-Axis Gantry Mill
Specifications (subject to buyer verification):
TRAVELS
TRAVELS
X Axis145.0 in
Y Axis87.5 in
Z Axis39.4 in
Spindle Nose to Table (~ max)37.0 in
Spindle Nose to Table (~ min)5.0 in
SPINDLE
Max Rating16.0 hp
Max Speed 20000 rpm
Max Torque 11.3 ft-lbf @ 7500 rpm
Drive System Integral Spindle/Motor
Taper HSK-A63
B AXIS – TILT
Travel120 ° to 120- °
Max Speed110 °/sec
Max Torque250 ft-lbf
C AXIS – ROTATION
Travel ±245 ° to 245- °
Max Speed200 °/sec
Max Torque258 ft-lbf
TABLE
Length144.0 in
Width72.0 in
Equipped With (subject to buyer verification):
Haas Next Gen CNC Control
Auxiliary Coolant Filter System for TSC
HSM – High Speed Machining
Probe Riser Block, 8”
Coolant System for Gentrys
Steel Table Inch
20,000 RPM Spindle, HSK-A63
Wifi Camera
