Haas HA5C 4th Axis – 2016

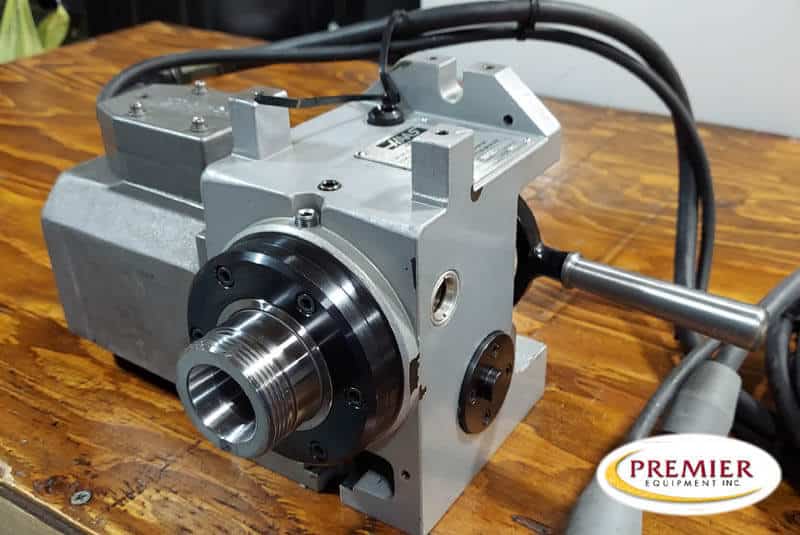

Haas HA5C 4th Axis
Specifications (subject to buyer verification):
LATTER S.A.E METRIC
Max Weight on Platter (w/support) 20 lb 9.1 kg
Max Weight on Platter (unsupported) 10 lb 4.5 kg
SPINDLE S.A.E METRIC
Max Speed 410 °/sec 410 °/sec
Max Torque 60 ft-lbf 81 Nm
Nose Thread 2 3/16 in – 10 2 3/16 in – 10
Runout Max 0.0004 in 0.010 mm
Center Height 4.000 in 101.60 mm
Collet Size 5C 5C
Backlash 40 arc-sec 40 arc-sec
Gear Ratio 60:1 60:1
INDEXING S.A.E METRIC
Accuracy (±) ± 30 arc-sec ± 30 arc-sec
Repeatability 10 arc-sec 10 arc-sec
Resolution 0.001 ° 0.001 °
Worm Gear Dia 2.8 in 71 mm
Max Rotation/Step (with rotary control) 999.999 ° 999.999 °
GENERAL S.A.E METRIC
Power Requirement 115 VAC ± 10% @ 15 A 115 VAC ± 10% @ 15 A
Operating Temp (max ambient) 100 °F 38 °C
AIR REQUIREMENTS S.A.E METRIC
Air Pressure Max 150 psi 10.3 bar
DIMENSIONS – SHIPPING S.A.E METRIC
Export Crate 20 in x 18 in x 16 in 51 cm x 46 cm x 41 cm
Weight 55 lb 25.0 kg
P3 – Sigma 5 Motor
