HAAS SL-20T – 2006

SKU: HAAS-SL-20T-2008-1 ,

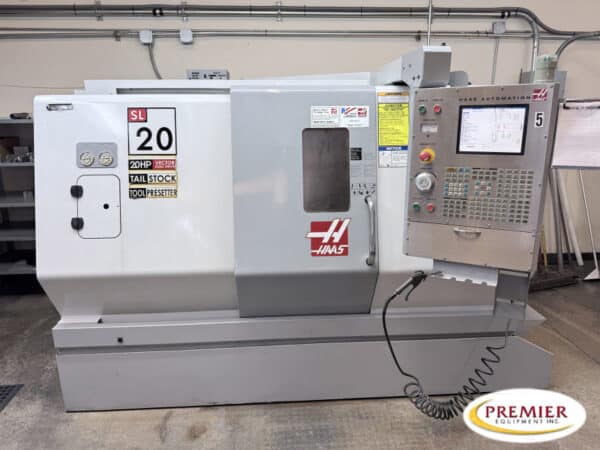

Haas SL20T
CNC Turning Center
Specifications:
Swing Over Front Apron 23″
Swing Over Cross Slide 9.5″
X-Axis Travel 8.45″
Z-Axis Travel 20″
Rapid Traverse Rates 710
Max Bar Capacity 2″
Dist Between Centers 24″
Max Turning Dia 10.3”
Max Turning Length 20″
Spindle Speeds 4,000 RPM
Spindle Motor 20 HP
Spindle Bore 3″
Draw Tube Bore 2.06″
Turret Stations 10
Live Tooling Speed / Motor 3000 RPM / 5 HP (Max Rating)
Machine Weight 9,000 Lbs
Machine Dimensions 126.5″L x 74″W x 72″H

Equipped With:
Haas CNC Control
Hight-Intensity Lighting
auto door
lathe tool presetter
programmable tailstock
visual quick code
5,000 rpm sprindle,
hybrid BOT/VDI tool turret
chip auger
intuitive programming system
ethernet interface
hard disk (40GB)
USB drive
High pressure coolants (300psi)
high torque option has larger motors providing more torque on both the live tools and C-axis
live tooling C-Axis option
