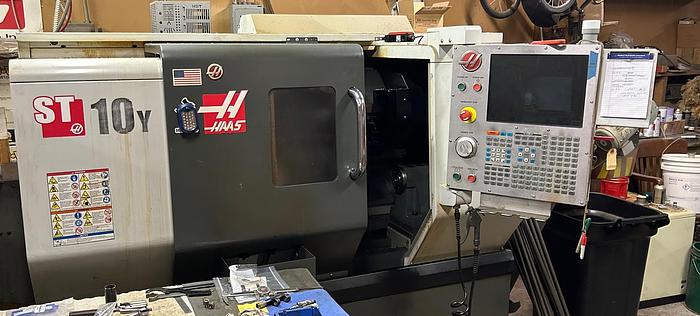

Haas ST-10Y – 2013

Haas ST10Y CNC Lathe

Bar Capacity: 1.75″
Chuck Size: 6.5″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
X Axis Travel: 7.88″
Z Axis Travel: 14″
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station (6 Live Milling Capable)
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 16.5″
Max Turning Length: 14″
Max Swing: 25.25″

Spindle Orientation: Full C-Axis (.01 Degree) Programmable
Y Axis ± 2″
Live Tooling 4000 rpm
Dimensions: 96″ L x 60″ W x 69″ H
Weight: 7,900 LBS
