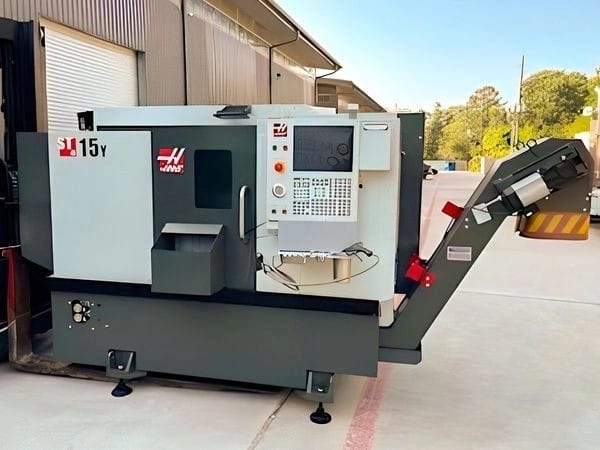

HAAS ST15Y CNC LATHE
Specs:
Max Swing: 25.25″
Max Turning Diameter: 16.5″
Max Turning Length: 14″
X Axis Travel: 7.88″
Y Axis Travel: ± 2.0″
Z Axis Travel: 14″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Bar Capacity: 2.5″
Chuck Size: 8.3″
Live Tool Milling Spindle: 6,000 RPM (UPGRAD Purchased)
Live Tool Milling Motor: 5 H.P.
Dimensions: 126″ x 83″ x 71″
Weight: 9,000 LBS
EQUIPPED WITH:
Haas NextGEN Control
Live Tooling
Y-Axis
Full C-Axis on Main Spindle
Automatic Tool Setter
Manual Tailstock w/ Hydraulic Quill
Chip Conveyor
Parts Catcher
6,000 RPM Live Tool Option.
