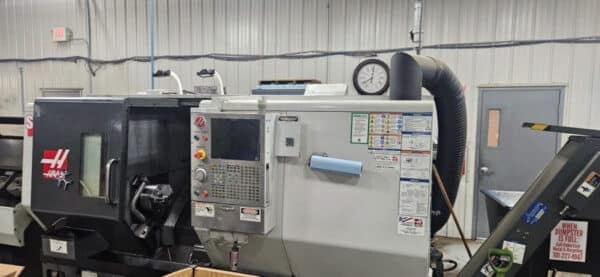

Haas ST30 with Milling 3-Axis CNC Chucker Lathe
Specifications (subject to buyer verification):
SWING DIAMETER
Over Front Apron 31.75″
CAPACITIES
Max Cutting Diameter 21.0″
Bar Capacity 4.0″
TRAVELS & FEEDRATES
X Axis 12.5″
Z Axis 26″
Rapids on X 945 in/min
Rapids on Z 945 in/min
SPINDLE
Max Rating 30 hp
Max Speed 3400 rpm
TURRET
Number of Tools 12 Stations
OD vs ID Tools Any Combination (will vary with turret style)
Boring Bar Rear Clearance (from back of turret ) 4.0″
Machine Weight 13200 lb
Equipped With (subject to buyer verification):
Haas CNC Control
12” Hydraulic chuck
12 position hybrid turret
Chip conveyor
Radial/axial live tooling
Royal quick grip QG80 collet system with collets and collet installation tool
Servo Auto Door
Big Bore Spindle, ST30
2-Speed Gearbox
HT Live Tools with C Axis
User Definable Macros
Rigid Tapping
Spindle Orientation
Hybrid VDI/BOT Turret
NO Tailstock
12” Hydraulic chuck
12 position hybrid turret
Chip conveyor
Radial/axial live tooling
Royal quick grip QG80 collet system with collets and collet installation tool
Servo Auto Door
Big Bore Spindle, ST30
2-Speed Gearbox
HT Live Tools with C Axis
User Definable Macros
Rigid Tapping
Spindle Orientation
Hybrid VDI/BOT Turret
NO Tailstock
