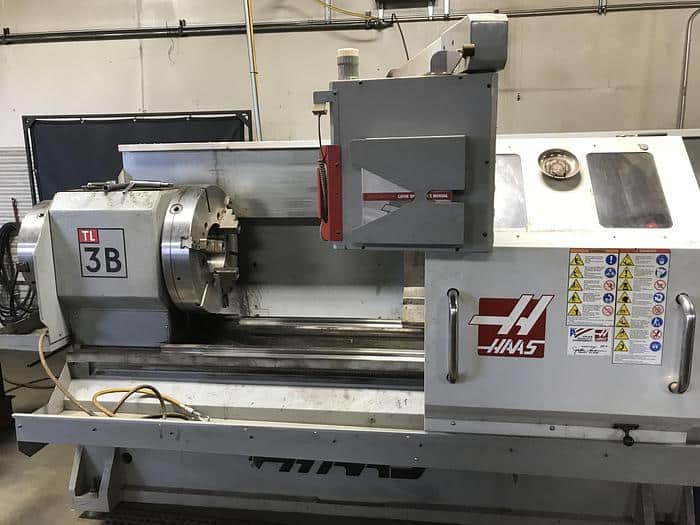

Haas TL-3B (2007)

HAAS TL 3B CNC BIG BORE for sale
Specs
Swing Over Bed 30″
Turning Diameter, Shaft Diameter 32″, 18.4″
Machining Length 60″
Distance Between Centers 60″
Chuck Size 1, 2 24″, 24″
Spindle Nose 1, 2 A2 – 15
Spindle Bore Diameter 1, 2 8.5″
Spindle Bar Capacity 1, 2 8.5″
Spindle Speeds 1, 2 650 RPM
Gear Ranges 2
Spindle Horsepower 1, 2 30 HP
Spindle Torque 1600 FT.LBS.
X – Axis Travel 1, 2 16″
Z – Axis Travel 1, 2 60″
Turret Configuration 1, 2 SINGLE POST
Programmable Tailstock NO
Tailstock Travel 40
Machine Weight 10,625 LBS.
Equipped with
1 MB PROGRAM MEMORY / USB PORT 2 SPEED GEARED HEADSTOCK
24″ 3 JAW MANUAL CHUCK REAR 24″ 3-JAW MANUAL CHUCK
8.5 SPINDLE BORE COOLANT PAN AND GUARDING
FRONT AND REAR A2 – 15 SPINDLE NOSE HAAS 32 BIT CNC CONTROL 15” COLOR MONITOR
INTUITIVE PROGRAMMING SYSTEM SPINDLE ORIENTATION
TOOL POST MODEL TP1.5″
