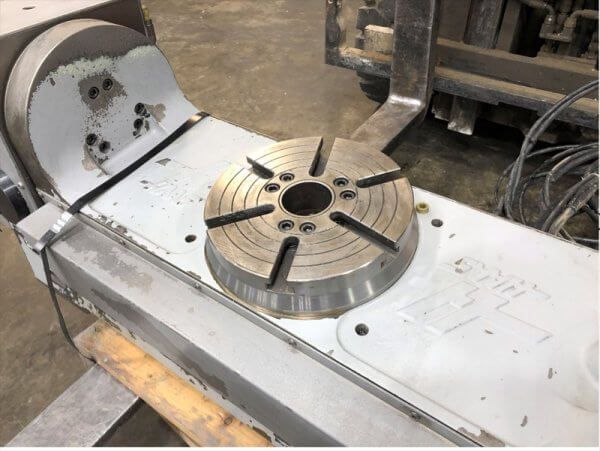

Haas TR210 Tilting Rotary Table
Specifications (subject to buyer verification):
Platter
Platter Diameter 8.3 in
Max Weight on Platter 200 lb
Part Swing Max 23.5 in
Number of Std T-Slots 6 @ 60°
Spindle – A (tilt)
Max Speed 60 °/sec
Max Torque 300 ft-lbf
Backlash 30 arc-sec
Gear Ratio 90:1
Timing 2:1
Brake Torque @ 100 psi/6.9 bar 400 ft-lbf
Spindle – B (rotary)
Max Speed 60 °/sec
Max Torque 210 ft-lbf
Runout Max 0.0005 in
Backlash 30 arc-sec
Gear Ratio 90:1
Timing 2:1
Brake Torque @ 100 psi/6.9 bar 200 ft-lbf
Indexing – A (tilt)
Max Rotation/Step ± 120 °
Resolution 0.001 °
Accuracy (±) ± 15 arc-sec
Repeatability 10 arc-sec
Indexing – B (rotary)
Max Rotation/Step 999.999 °
Resolution 0.001 °
Repeatability 10 arc-sec
General
Operating Temp (max ambient) 100 °F
Duty Cycle full/low speed 50/100 %
Air Requirements
Air Pressure Max 150 psi
Weight
Table 815 lb
Brushless Control – 1-Axis 14.2 lb
Dimensions – Shipping
Export Create Dimensions 58 in x 23 in x 27 in
Weight 790 lb
