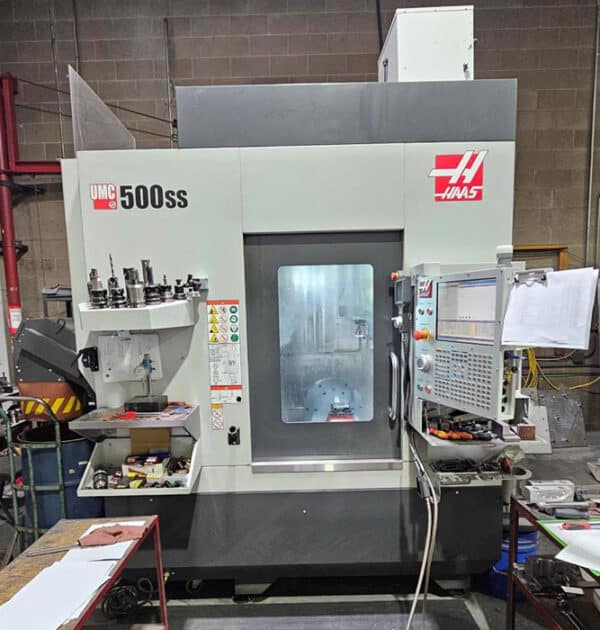

Haas UMC500SS 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis 24.0 in
Y Axis 16.0 in
Z Axis 16.0 in
Spindle Nose to Platter (~ max) 20.0 in
Spindle Nose to Platter (~ min) 4.0 in
SPINDLE
Max Speed 15,000 rpm
Taper HSK-A63
B AXIS – TILT
Travel120 ° to 35- °
Max Speed179 °/sec
Max Torque1854 ft-lbf
Brake Torque900 ft-lbf
C AXIS – ROTATION
Travel360 °
Max Speed179 °/sec
Max Torque1854 ft-lbf
Max Part Swing18.0 in
Brake Torque 900 ft-lbf
PLATTER
Platter Diameter15.70 in
Max Weight on Platter500 lb
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance2.48 in
Number of Std T-Slots5
FEEDRATES
Max Cutting650 ipm
Rapids on X 1200 ipm
Rapids on Y 1200 ipm
Rapids on Z 1200 ipm
TOOL CHANGER
TypeSMTC
Capacity50+1
Equipped With (subject to buyer verification):
Haas CNC Control
Dynamic Work Offsets and Tool Center Point Control
Ethernet Interface
High-Speed Machining
Top cover with mist extraction
400 mm integrated 2-axis trunnion rotary table
Rotary Scales
15K-HSK-A63 15,000-rpm HSK-A63 Spindle
SMTC-50-HSK Side-Mount Tool Changer
CONVEYOR-H Belt-Type Chip Conveyor
P-COOL Programmable Coolant Nozzle
WIFI CAMERA WiFi Camera
