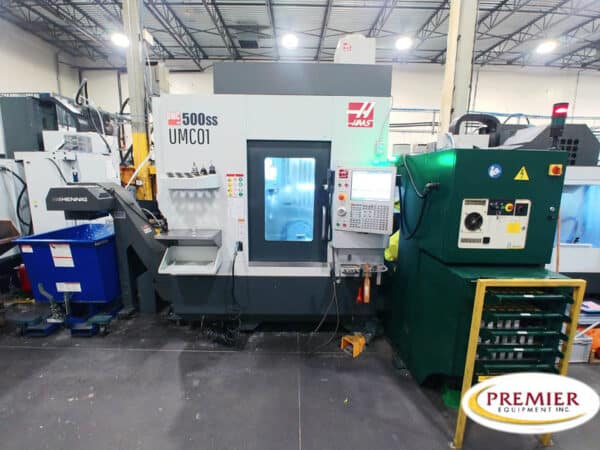

Haas UMC500SS 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis 24.0 in
Y Axis 16.0 in
Z Axis 16.0 in
Spindle Nose to Platter (~ max) 20.0 in
Spindle Nose to Platter (~ min) 4.0 in
SPINDLE
Max Rating 30.0 hp
Max Speed 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper 40
B AXIS – TILT
Travel 120 ° to 35- °
Max Speed 179 °/sec
Max Torque 1854 ft-lbf
Brake Torque 900 ft-lbf
C AXIS – ROTATION
Travel 360 °
Max Speed 179 °/sec
Max Torque 1854 ft-lbf
Max Part Swing 18.0 in
Brake Torque 900 ft-lbf
PLATTER
Platter Diameter 15.70 in
Max Weight on Platter 500 lb
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 2.48 in
Number of Std T-Slots 5
FEEDRATES
Max Cutting 650 ipm
Rapids on X 1200 ipm
Rapids on Y 1200 ipm
Rapids on Z 1200 ipm
TOOL CHANGER
Type SMTC
Capacity 50+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 12 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 1.8 s
Chip-to-Chip (avg) 2.4 s
GENERAL
Coolant Capacity 55 gal
AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi
DIMENSIONS – SHIPPING
Domestic Pallet 120 in x 98 in x 110 in
Equipped With (subject to buyer verification):
Haas CNC Control
CT
SMTC-50 – Side Mount Tool Changer, 40 Taper, 50+1 Tools
TSC – Through Spindle Coolant @ 300 PSI
Chip Conveyor – Belt-Type Chip Covneyor
Coolant Maint Pack – Enclosure Exhaust System, Coolant Tank Oil Skimmer and Automatic Coolant Refilll System
High Pressure Flood Coolant System
Programmable Coolant Nozzle
Through Tool Air Blast
Robot shown in pictures is not included but is available for $20,000 extra
