Haas UMC-750SS – 2016

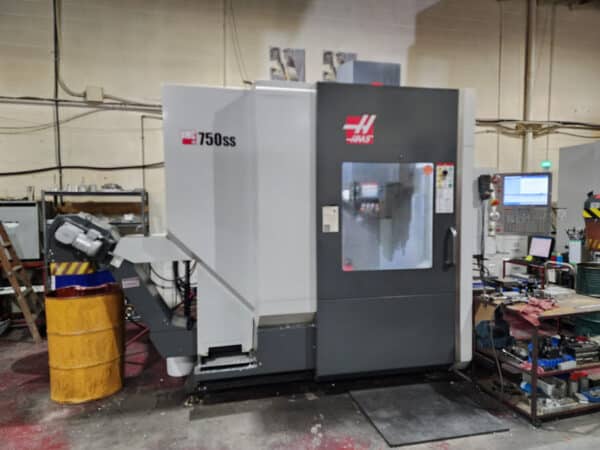

2016 Haas UMC-750SS
CNC 5-Axis Vertical Machining Center

Specification:
Control Haas Next GeneratioN CNC Control 5-Axis
Machine Travels 30″ x 20″ x 20″
Rapid Traverse X/Y/Z 1,200 IPM
Spindle Nose To Table 4-24″
5-Axis Table Style Integrated Trunnion Table
Table Size 24.8″ x 19.7″
Rotary Axes Rapid Traverse Rate 150 Degrees / Second
Rotary Axes Feed Rates Max 150 Degrees / Second
Spindle Taper Cat 40
Spindle Speeds 0-15,000 RPM
Spindle Drive 30 HP Vector Spindle Drive
Tool Changer Capacity 40 Stations, Twin -Arm, Bi-Directional
Max Tool Weight / Diameter 12 Lbs / 3″ With Adjacent Pockets Full
Tool Change Time 2.3 Seconds Tool to Tool / 3.2 Seconds Chip to Chip
Max Table Capacity 660 Lbs.
Approximate Machine Dimensions: 130.00″L x 88.00″W x 104.00″H
Approximate Weight: 18000.00 lbs.

Equipped With:
Haas Next Gen 5-Axis CNC Control, USB Port, Ethernet, High Speed Machining, 15,000 RPM Max Spindle Speed, 30 HP Inline Direct Spindle Drive, Integrated 2-Axis Trunnion Table, 40 Station Twin Arm Automatic Tool Changer, Wireless Intuitive Probing System with Tool and Parts Probes, Hennig Chip Conveyor, Cat 40 Taper Spindle, Remote Jog Handwheel, Rigid Tapping, Through Tool Air Blast, Dynamic Work Offset and Tool Center Point Control, Second Home Position, Coolant System, Memory Stick with Backup Parameters, Plastic Wokr Area Cover
