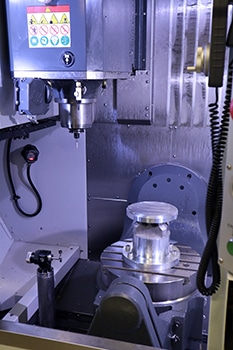

Haas UMC-500SS – 2020

Haas UMC500SS 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
TRAVELS
X Axis 24.0 in
Y Axis 16.0 in
Z Axis 16.0 in
Spindle Nose to Platter (~ max) 20.0 in
Spindle Nose to Platter (~ min) 4.0 in
SPINDLE
Max Rating 30.0 hp
Max Speed 12000 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper 40
B AXIS – TILT
Travel 120 ° to 35- °
Max Speed 179 °/sec
Max Torque 1854 ft-lbf
Brake Torque 900 ft-lbf
C AXIS – ROTATION
Travel 360 °
Max Speed 179 °/sec
Max Torque 1854 ft-lbf
Max Part Swing 18.0 in
Brake Torque 900 ft-lbf
PLATTER
Platter Diameter 15.70 in
Max Weight on Platter 500 lb
T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 2.48 in
Number of Std T-Slots 5
FEEDRATES
Max Cutting 650 ipm
Rapids on X 1200 ipm
Rapids on Y 1200 ipm
Rapids on Z 1200 ipm
TOOL CHANGER
Type SMTC
Capacity 50+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 12 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 1.8 s
Chip-to-Chip (avg) 2.4 s
GENERAL
Coolant Capacity 55 gal
AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi
DIMENSIONS – SHIPPING
Domestic Pallet 120 in x 98 in x 110 in

Equipped With (subject to buyer verification):
Haas CNC Control
Super Speed 5-Axis VMC 24x16x16
32 GB Expanded Memory
Auxiliary Coolant Filter
Belt-Type Chipo Conveyor
CAT
Dynamic Work Offset & Tool Ctr Pt Ctrl
Enclosure Exhaust System
Ethernet Interface
Haas Connect Option
Second Home Position
High Speed Machining
Media Display M-Code
Oil-Skimmer
Programmable Coolant Nozzle
Remote Jog Handle, Touchscreen
Rotary Scales, UMC
Rigid Tapping
SMTC-50, 50+1 Side Mount Toolnager 40 Taper
Top Cover w/Mist Extr Prov
Thruogh Spindle Coolant, 300 PSI
UMC-500SS-SAP-VAR
WIFI Connection for Haas Control
WIPS-R-EC – Intuitive Probing, Renishaw
