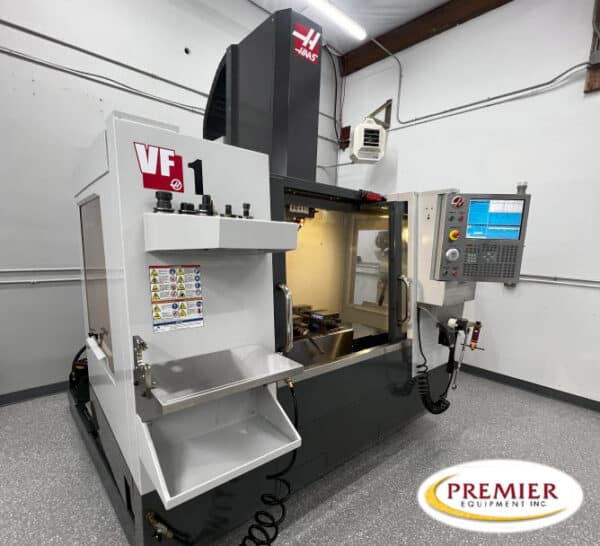

Haas VF1 CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size 26″ x 14”
Table Load Capacity 3000 lbs
X Axis Travel 20”
Y Axis Travel 16″
Z Axis Travel 20″
Distance between Spindle Nose & Table 4” – 24”
Magazine Capacity 20 ATC
Max. Tool Dia. 3.5”
Max. Tool Weight 12 lbs.
Change Time (Tool to Tool) / (Chip to Chip) 4.0 sec. / 5.4 sec
Rapid Traverse Rates 1000 IPM
Max Cutting 650 IPM
Spindle Nose / Taper CAT 40
Spindle Speed 8,100 RPM
Main Motor 30 HP
Dimensions 88” x 92.8” x 92”
Weight 7,100 lbs estim.
Equipped With (subject to buyer verification):
Haas CNC Control
Chip Auger
