HAAS VF-11/50 – 2006

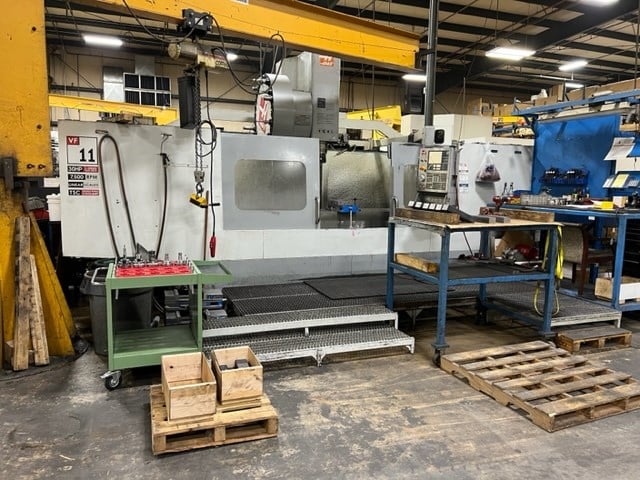

HAAS VF11/50 CNC VERTICAL MACHINING CENTER
Specs
Number Of Tables / Pallets 1
Table Size 120″ x 28″
Weight On Table 4,000 LBS.
Spindle Nose To Table 12″ – 42″
X – Axis Travel 120″
Y – Axis Travel 40″
Z – Axis Travel 30″
Spindle Speed 7,500 RPM
Spindle Taper 50 CT
Number Of Gear Ranges 2
Main Motor 30 HP
Automatic Tool Changer 30 ATC
Tool Diameter 3.5″
Tool Length 16″
Tool Weight 30 Lbs.
Machine Weight 36,500 Lbs.
Equipped with
HAAS 4TH AXIS ROTARY HAAS CNC CONTROL
HAND HELD MPG PROGRAMMABLE COOLANT
REMOTE AIR BLAST RIGID TAPPING
THRU SPINDLE COOLANT
