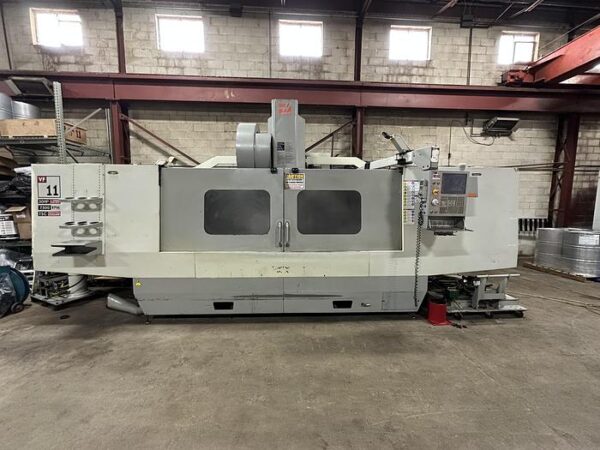

Haas VF11/50 CNC VERTICAL MACHINING CENTER
Travels – X, Y, Z 120″ x 40″ x 30″
Table load capacity 4,000 Lbs.
Spindle nose to table 5″ – 35″
Spindle Speed Range 7,500 Rpm ( 2 Speed Gearbox )
Spindle Taper CAT 50
Spindle Motor 30 Hp
Rapid Feedrate 360 ipm – X, 600 ipm – Y, Z
Max. cutting feedrate 360 ipm
Max. tool weight 30 Lbs.
Approx. weight of machine 30,900 Lbs.
Electrics 220V/3/60
Description
Remote jog handle
Brushless 4th- axis option
Chip auger
Ethernet inter-face/ hard drive
High intensity lighting
Second home position
High Speed Machining
Programmable coolant
Spindle orientation
Thru spindle coolant(100 psi)
Quickcode programming,
Renishaw probing system, macro,
Spindle orientation
Coordinate rotation & scaling
Sidemount toolchanger (24+1)
