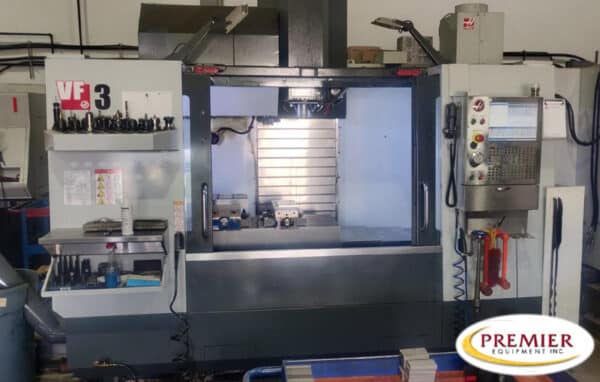

Haas VF3 CNC Mill
Specifications (subject to buyer verification):
TRAVELS
X Axis 40.0”
Y Axis 20.0”
Z Axis 25.0”
Spindle Nose to Table (~ max) 29.2”
Spindle Nose to Table (~ min) 4.2”
SPINDLE
Max Rating 30.0 hp
Max Speed 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm
Drive System Inline Direct-Drive
Taper 40
Bearing LubricationAir / OilInjection
CoolingLiquid Cooled
TABLE
Length48.0”
Width18.0”
Type Side Mount
Capacity30
Equipped With (subject to buyer verification):
Haas CNC Control
Side Mount Tool Changer 30+1
Through Spindle Coolant @ 300 PSI
4AXBL – 4th Axis Drive and Wiring Only
WIPS-R Wireless Intuitive Probing, Renishaw
Chip Auger
Programmable Coolant Nozzle
Remote Jog Handle
Enclosure Exhaust System
Minimum Quantity Lubrication System
64GB Program Memory
