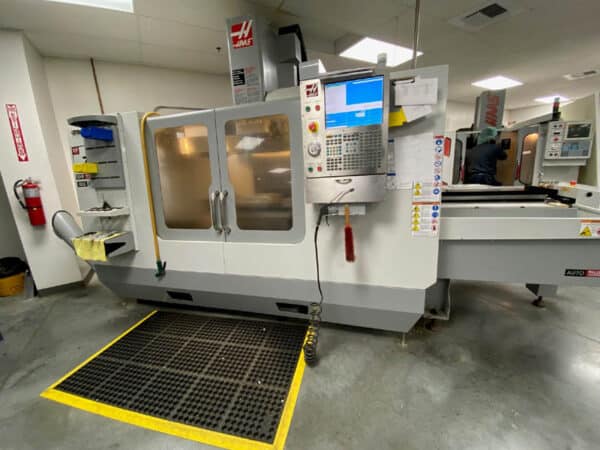

HAAS VF3D (2-Pallet) VERTICAL MACHINING CENTER
SPECIFICATIONS:
TRAVELS
X-AXIS …………………… 40″
Y-AXIS …………………… 20″
Z-AXIS …………………… 25″
PALLET DIMENSIONS …………. 40″ x 19″
MAX WEIGHT ON TABLE ……….. 3,500 LBS
SPINDLE TAPER SIZE ………… #40 TAPER (CAT)
SPINDLE SPEED RANGE ……….. 0 – 7,500 RPM
SPINDLE MOTOR …………….. 20 HP VECTOR DRIVE
SPINDLE TAPER …………….. CAT#40
RAPID TRAVERSE ……………. 1000 IPM
TOOL CHANGER ……………… 20 POSITION
APPROXIMATE MACHINE WEIGHT….. 14,000 LBS
MAXIMUM MACHINE HEIGHT …….. 117.5″
EQUIPPED WITH:
– HAAS CONTROL
– RIGID TAP
– AUTOMATIC PALLET CHANGER
– CHIP AUGER
– PROGRAMMABLE COOLANT
