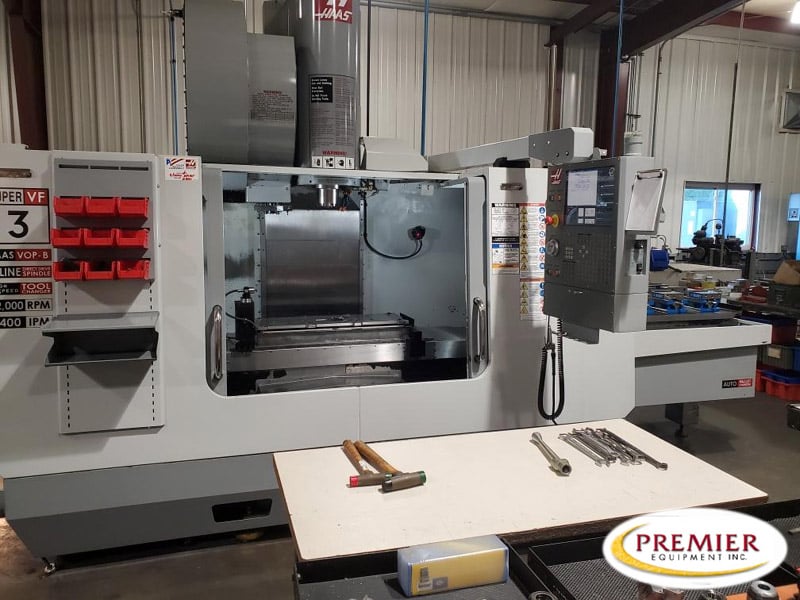

Haas VF-3SS (2-Pallet) – 2007

Haas VF3SS(2-Pallet) CNC Mill
Specifications (subject to buyer verification):
Table Size40″ x 19”
Maximum Weight on Table1,750 lbs
X Axis Travel40”
Y Axis Travel20″
Z Axis Travel25″
Automatic Tool ChangerSide Mount 24 ATC?
Spindle TaperCAT #40 Taper
Max Tool Diameter3.0”
Tool to Tool / Chip to Chip1.6 sec / 2.2 sec
Spindle Speed in RPMS12,000 RPM
Spindle Motor30 HP
Drive SystemInline Direct Drive
Max Torque75 ft-lb @ 2,100 RPM
Feedrate Rapid on (X,Y,Z)1400 IPM
Max Cutting Feedrate833 IPM
Machine Dimensions118” x 110” x 119.5”
Machine Weight12,5000 lbs.
Equipped With (subject to buyer verification):
Haas CNC Control
Automatic Pallet Changer (2) 40” x 19” Pallets
