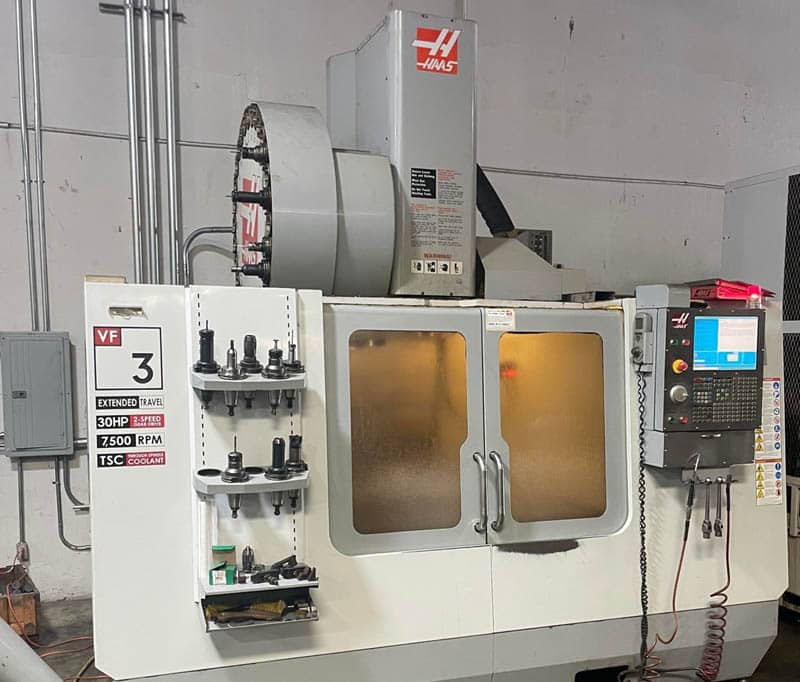

Haas VF-3YT/50 – 2008

HAAS VF-3YT/50

SPECIFICATIONS:
Travels:
X-Axis 40″
Y-Axis 26″
Z-Axis 25″
Spindle nose to table (min) 4.5″
Spindle nose to table (max) 29.5″
Table:
Length 54″
Width 25″
T-Slot width 5/8″
T-Slot center distance 3.15″
Number of Std T-Slots 5
Max. weight on table (evenly distributed) 3500 LBS
Spindle:
Max. rating 30/40 HP
Max. speed 10,000 RPM geared spindle
Max. torque 75 FT-LB @ 1400
RPM
Drive system Direct speed belt drive
Max. torque w/opt gearbox 250 FT-LB @ 450
Taper 50
Bearing lubrication Air/Oil Injection
Cooling Liquid cooled
Feedrates:
Rapids on X 710 in/min
Rapids on Y 710 in/min
Rapids on Z 710 in/min
Max. cutting 500 in/min
Tool changer:
Type Carousel
(SMTC Optional)
Capacity 30
Max. tool diameter (full) 3.5″
Max. tool weight 12 LBS
Tool-to-tool (avg) 4.2 Sec.
Chip-to-chip (avg) 4.5 Sec.
General:
Machine weight 14,000 LBS

EQUIPPED WITH:

Haas CNC controls,
10,000 rpm geared spindle
coolant thur spindle
30 position ATC
50 Taper Spindle
Hard Disk Drive Ethernet
Remote Jog Handle
4th Axis Drive, Extended Y-Axis
HIgh speed machining
Macros, Floppy Disc Drive
Rigid Tapping, Spindle Orientation
Visual Quick Code Probe System
Intuitive Programing System
Chip Auger
High Intensity Lighting
Wireless Probing (Tool Probe, No Spindle Probe)
