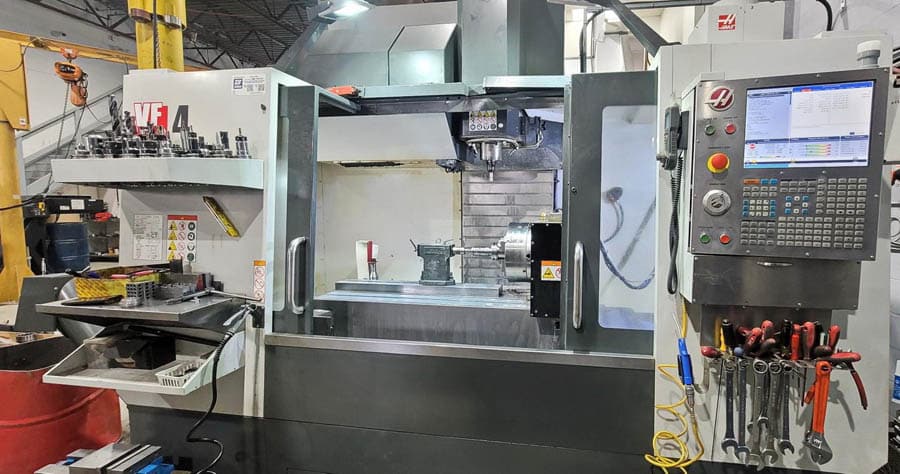

HAAS VF4 CNC Mill
CNC Vertical Machining Center
SPECIFICATIONS
X-AXIS TRAVEL 50″
Y-AXIS TRAVEL 20″
Z-AXIS TRAVEL 25″
TABLE SIZE 52″ x 18″
WEIGHT ON TABLE 3,500 lbs
SPINDLE SPEED 8,100 RPM
SPINDLE MOTOR 30 HP
FEEDRATES 1,000 IPM
CUTTING SPEED 650 IPM
MAX THRUST X/Y 2,550 lbs
MAX THRUST Z 4,200 lbs
TOOL CHANGER POSITIONS 30
MAX TOOL DIAMETER 3.5″
TOOL WEIGHT 12 lbs
TOOL TO TOOL TIME 4.2 Seconds
MACHINE DIMENSIONS 118″ x 110″ x 119.5″
MACHINE WEIGHT 13,300 lbs
OPTIONS / EQUIPPED WITH
HAAS NEW GENERATION CONTROL
SIDE MOUNT TOOL CHANGER
4TH AXIS DRIVE & WIRING
High Pressure Thru Spindle Coolant @ 1000 PSI
Chip Auger
** ONLY 1441HRS CUTTING
