HAAS VF7/40 CNC Mill
SPECIFICATIONS:
SIZE 84″ x 32″
X TRAVEL 84″
Y TRAVEL 32″
Z TRAVEL 30″
POWER 30 hp
RPM 10,000 RPM
# ATC 30
TAPER 40
TABLE-W 28″
TABLE-L 84″
# AXIS 4
CONTROL CNC (Haas CNC)
WEIGHT 25600

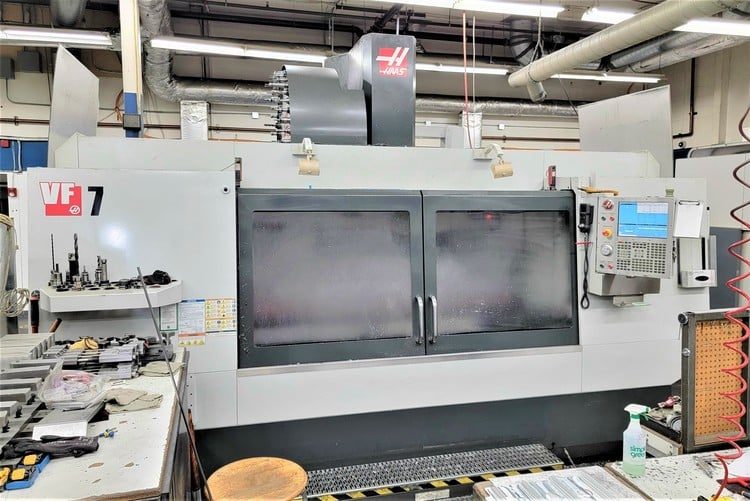

Haas VF-7 4 Axis Vertical Machining Center (2010)
Capacity 40 Position Side Mount
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 6.0 in 152 mm
Max Tool Length (from gage line) 16 in 406 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 2.8 s 2.8 s
Chip-to-Chip (avg) 3.6 s 3.6 s
GENERAL S.A.E METRIC
Coolant Capacity 95 gal 360 L
AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS – SHIPPING S.A.E METRIC
Domestic Pallet 214 in x 102 in x 129 in 544 cm x 260 cm x 326 cm
Export Crate 214 in x 106 in x 130 in 544 cm x 268 cm x 330 cm
Weight 25600 lb 11612.0 kg
Domestic Pallet w/EC Option 214 in x 102 in x 138 in 544 cm x 260 cm x 351 cm
Export Crate w/EC Option 214 in x 106 in x 139 in 544 cm x 270 cm x 352 cm
Weight w/EC Option 25600 lb 11612 kg
Domestic Pallet w/50+1 SMTC 214 in x 102 in x 134 in 544 cm x 260 cm x 339 cm
Export Crate w/50+1 SMTC 214 in x 106 in x 136 in 544 cm x 268 cm x 344 cm
Weight w/50+1 SMTC 25600 lb 11612 kg
Domestic Pallet w/EC Option & 50+1 SMTC 214 in x 102 in x 143 in 544 cm x 260 cm x 364 cm
Export Crate w/EC Option & 50+1 SMTC 214 in x 106 in x 143 in 544 cm x 270 cm x 364 cm
Weight w/EC Option & 50+1 SMTC 25600 lb 11612 kg
ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 10000 RPM
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 20HP
Input AC Voltage (3 Phase) – Low 220 VAC 220 VAC
Full Load Amps (3 Phase) – Low 70 A 70 A
Input AC Voltage (3 Phase) – High* 440 VAC 440 VAC
Full Load Amps (3 Phase) – High* 35 A 35 A
EQUIPPED WITH:
High Speed Machining with Look-ahead
10,000 RPM 20HP Spindle
2 Speed Gearbox
40 Tool ATC
CT40
Rigid Tapping
1GB Memory
Programmable Coolant Nozzle
Auto Air Gun
Remote Jog Handle
Chip Auger system
High Intensity Lighting
Renishaw Wireless Probe System
4th Axis Electrics
