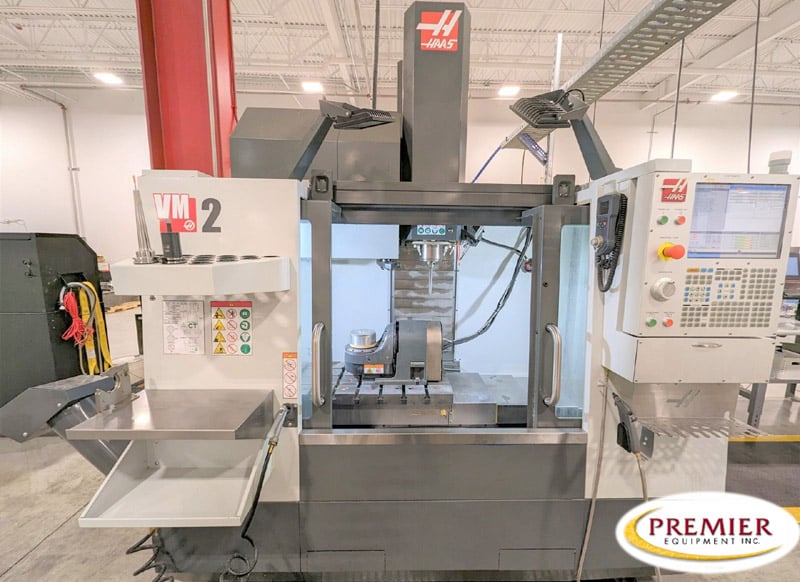

Haas VM2 (5-Axis) CNC Mill
Specifications (subject to buyer verification):
TRAVELS
X Axis30.0”
Y Axis20.0”
Z Axis20.0”
Spindle Nose to Table (~ max)24.0”
Spindle Nose to Table (~ min)4.0”
SPINDLE
Max Rating30.0 hp
Max Speed12000 rpm
Max Torque90 ft-lbf @ 2000 rpm
Drive SystemInline Direct-Drive
Taper40
Bearing Lubrication Air / Oil Injection
TABLE
Length36.0”
Width18.0”
T-Slot Width0.630”
T-Slot Center Distance4.38”
Number of Std T-Slots7” Y and 3” X
Max Weight on Table (evenly distributed)3000 lb
TOOL CHANGER
TypeSMTC
Capacity30+1
Equipped With (subject to buyer verification):
Haas CNC Control
12,000 RPM INLINE SPINDLE
1GB MEMORY
BRUSHLESS 4TH AXIS OPTION
BRUSHLESS 5TH AXIS OPTION
AUTO AIR GUN
AUXILIARY COOLANT FILTER
CHIP AUGER
CT OPTION
DYNAMIC WORK OFFSET & TOOL CENTER POINT CONTROL
ETHERNET INTERFACE
HAAS CONNECT
HIGH SPEED MACHINING
MEDIA DISPLAY M CODE
PROGRAMMABLE COOLANT
REMOTE JOG HANDLE
ROTARY AXIS CALIBRATION TOOL
RIGID TAPPING
30+1 SIDEMOUNT ATC
THROUGH TOOL AIR BLAST
TABLE AUXILIARY AIR SUPPLY
THROUGH SPINDLE COOLANT 300 PSI
WIFI CONNECTION
WINDOW BLAST
WIPS-RENISHAW
MACRO OPTION
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
HAAS TRT100 5-AXIS ROTARY
