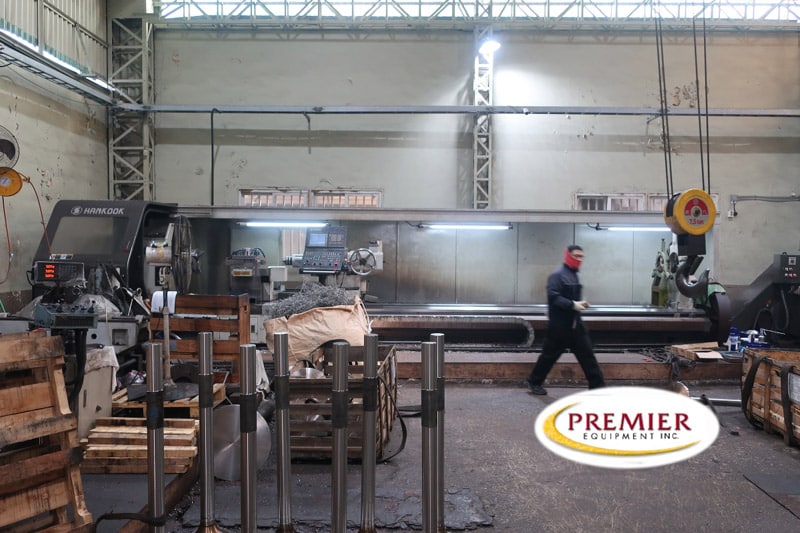

HANKOOK DYNATURN 13N/6000 – 2012

2012 HANKOOK DYNATURN 13N/6000 CNC HEAVY DUTY UNIVERSAL TURNING CENTER
Specs
Maximum Swing Over bed 51.2″
Max. Swing Over Cross Slide 37″
Distance Between Centers 236″
Spindle Bore Diameter 4.1″‘
X – Axis Travel 28.3″
Z – Axis Travel 236″
Rapid Traverse X, Z 157, 236 IPM
Spindle Nose A2-15″
Spindle Speeds 1-630 RPM
Gear Ranges AUTO 4
Main Motor 60 HP
Turret Configuration 4
Load Capacity Between Centers 17,600 lbs.
Tailstock Quill Diameter 7.9″
Tailstock Spindle Taper MT #6
Maximum Quill Travel 11.8″
Machine Weight 40,300 LBS.
Equipped with
(SMALL MOUNTED CHUCK NOT INCLUDED) 3 MANUAL STEAD RESTS AND 1 ROLL STAND
40″ 4 – JAW MANUAL CHUCK CHIP CONVEYOR
FANUC 32IA CNC CONTROL
