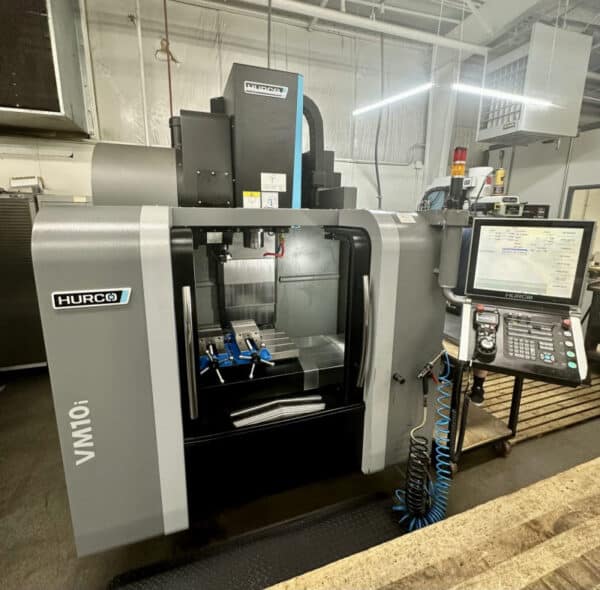

HURCO VM10i
CNC VERTICAL MACHINING CENTER
SPECIFICATIONS:
CNC Control: yes
Type of CNC Control: Hurco WinMax CNC Control
# Axis: 3
Table Size: 30″ x 16″
Table Load Capacity: 1,500 LBS
X-Axis (Longitudinal Travel): 26″
Y-Axis (Cross Travel): 16″
Z-Axis (Vertical Travel): 20″
Max Clearance Table Top to Spindle Nose: 4″
Feed Rates, All Axes: 945 IPM
Rapid Traverse Rate, All Axes: 945 IPM
Spindle Horsepower: 15 HP
Max Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40
Torque, Up To: 54 FT-LBS @ 1,450 RPM
Automatic Tool Changer Capacity (ATC): 20
Automatic Tool Changer Style: Side-Mount
Machine Cutting Hours: 6,270
Electrics: 220/3/60
Approximate Machine Dimensions: 118.1″ x 113.8″
Approximate Machine Height: 99.6″
Approximate Machine Weight: 6,200 LBS
EQUIPPED WITH:
Hurco WinMax CNC Control, Rigid Tapping, Coolant Tank
