Hwacheon Cutex-160A – 2014

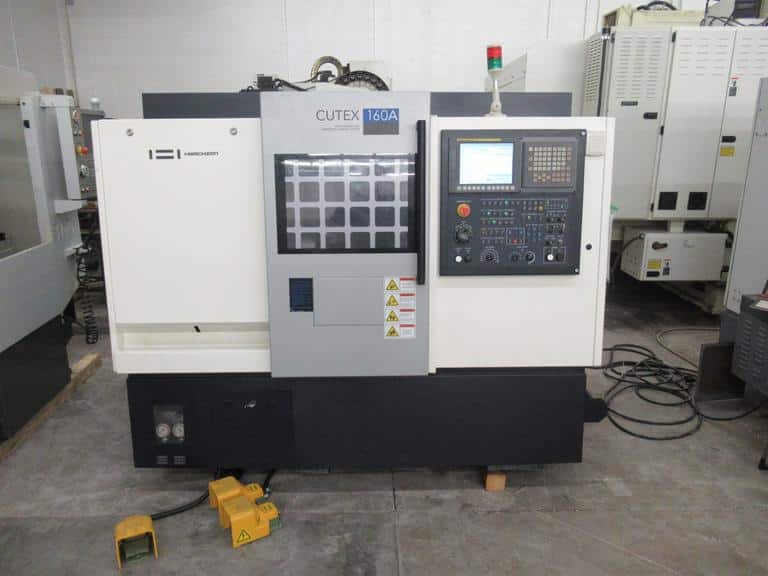

Hwacheon Cutex-160A 2-Axis CNC Turning Center

Control Fanuc Oi-TD CNC Control
Max Swing Over Bed 21.65″
Max Turning Diameter 11.81″
Max Turning Length 11.81″
Spindle Speeds 0-6000 RPM
Spindle Drive 15HP
Max Bar Capacity 1.77″
Turret Capacity 12 Stations
Turret Travels (X,Z) 6.69″ / 13.18″
Tailstock? Hydraulic Tailstock

Equipped With:
Fanuc Series Oi-TD CNC Control, 6″ 3-Jaw Chuck, 6,000 RPM Spindle, 12 Station Bolt-on Turret,
Hydraulic Tailstock Positioned by Turret, Foot Pedal Trips, Complete Coolant System and Tank,
Worklight, Bolt-on Turret Tool Holders and Wedge Clamps Included.
