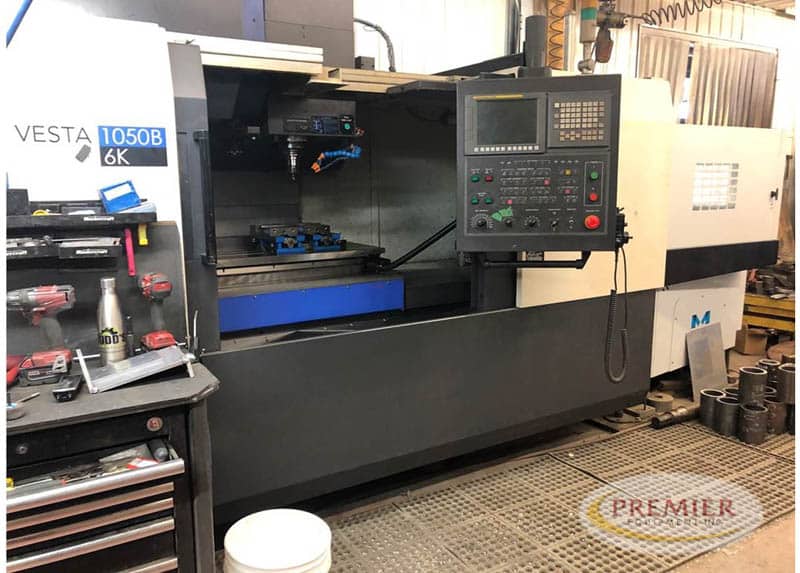

Hwacheon Vista 1050B 2-Pallet (2012)

HWACHEON VISTA 1050B CNC BOX WAY VERTICAL MACHINING CENTER GEARED HEAD
Specs
Number Of Tables / Pallets 2
Table Size 40″ x 19″
Weight On Table 1000 Lbs
Spindle Nose To Table 4.92″ – 28.54″
X – Axis Travel 41.34″
Y – Axis Travel 23.62″
Z – Axis Travel 23.62″
Rapid Traverse X, Y, Z 945, 945, 709 IPM
Cutting Feed Rate 394 IPM
Spindle Speed 6000 RPM
Spindle Taper 50 CT
Number Of Gear Ranges 2
Main Motor 25 HP
Automatic Tool Changer 30 ATC
Tool Diameter 4.92″ / 9.65″
Tool Length 13.78″
Tool Weight 44.09 Lbs.
Machine Weight 16535 Lbs.
Equipped with
FANUC OIMD CNC CONTROL MIDACO A40SD AUTOMATIC PALLET CHANGER
