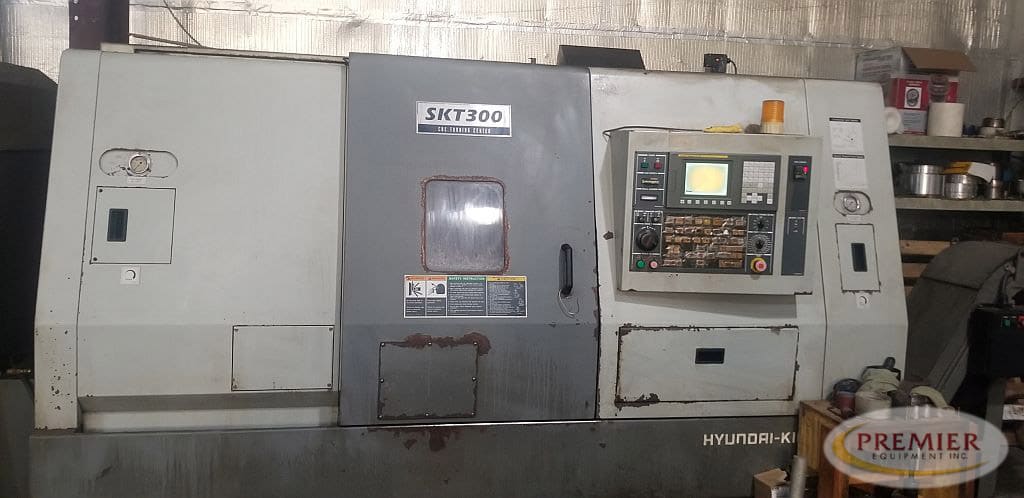

Hyundai-Kia SKT300 for sale
CNC Turning Center
Specifications:
Swing Over The Bed 29.5”
Swing Over the Cross Slide 18.9”
Max Turning Diameter 22.1”
Max Turning Length 27”
Spindle Bore / Bar Capacity 4.02” / 3.5”
X-Axis Travel 14”
Z-Axis Travel 27”
Spindle Speed 3000 RPM
Spindle Nose A2-8
Max Spindle Torque 810 ft-lbs
Speed Drive 2 Step Geared
No of Tool Stations on Turret 12
Rapid Traverse x / Z 787 IPM / 945 IPM
Tailstock Quill Bore Taper / Quill Diameter / Quill Travel MT#5, 3.9” / 4.7”
Tailstock Travel 27”
Main Motor 35 / 30 HP
Equipped With:
Fanuc Series Oi-TC CNC Control
12” Samchully Hydraulic Chuck
Tailstock
Tool Presetter
